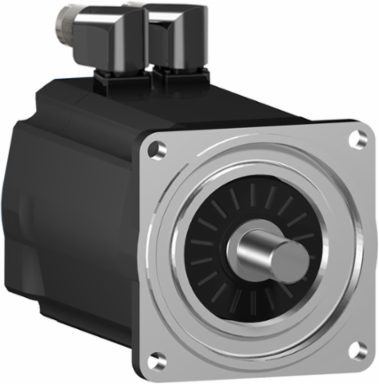

Schneider Electric SH31002P11A2200 Servo Motor 5.8 N.m Continuous Torque, 6000 RPM, IP65/IP67 Protection
- MPN: SH31002P11A2200
- PPN: SCH-SH31002P11A2200
CAD
$4476.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Crafted by Schneider Electric, this servo motor is designed to provide robust performance in motion control applications, featuring a continuous torque of 5.8 N.m and impressive speeds of up to 6000 RPM. It is engineered for reliability in demanding environments, boasting an IP65/IP67 rating, which ensures enhanced protection against dust and water ingress. Ideal for automation and control systems, this servo motor combines precision and durability, making it a valuable component for professional engineering and industrial projects.
Documentation & Downloads
Specifications
Additional
- Continuous Stall Torque
- 5.8 N.m 115...480 V three phase
- Maximum Mechanical Speed
- 6000 rpm
- Nominal Output Power
- 580 W (115 V), 1090 W (230 V), 1930 W (400 V), 2210 W (480 V)
- Nominal Torque
- 5.5 N.m (115 V), 5.2 N.m (230 V), 4.6 N.m (400 V), 4.4 N.m (480 V)
- Continuous Stall Current
- 4.8 A
- Phase
- Three phase
- Maximum Axial Force
- 160 N
- Back Emf Constant
- 77 V/krpm at 20 B0C
- Stator Resistance
- 2.4 Ohm
- Type of Cooling
- Natural convection
- Shaft Diameter
- 0.75 in (19 mm)
- Key Width
- 0.24 in (6 mm)
- Number of Mounting Holes
- 4
- Centring Collar Diameter
- 3.74 in (95 mm)
- Motor Flange Size
- 3.94 in (100 mm)
- Shaft End
- Parallel key
- Net Weight
- 12.79 lb (5.8 kg)
- IP Rating
- IP65 motor, IP65 shaft bushing, IP67 housing
- Environmental Disclosure
- ENVPEP111049EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
Peak Stall Torque18.3 N.m 115...480 V three phase
Continuous Power1900 W
Nominal Speed1000 rpm (115 V), 2000 rpm (230 V), 4000 rpm (400 V), 4800 rpm (480 V)
Maximum Current Irms17.1 A
Voltage115...480 V three phase
Maximum Radial Force990 N (1000 rpm), 790 N (2000 rpm), 690 N (3000 rpm), 620 N (4000 rpm)
Torque Constant1.21 N.m/A at 120 B0C
Number of Motor Poles4
Stator Inductance19.5 mH
Length8.05 in (204.5 mm)
Shaft Length1.57 in (40 mm)
Mounting Holes Diameter0.35 in (9 mm)
Circle Diameter of Mounting Holes4.53 in (115 mm)
Centring Collar Depth0.14 in (3.5 mm)
Electrical ConnectionStraight connector
Mounting SupportInternational standard flange
MaterialNot specified
Encoder TypeAbsolute single turn SinCos Hiperface
RoHS ComplianceYes, Pro-active compliance (Product out of EU RoHS legal scope)
PVC FreeYes
Warranty18 months
