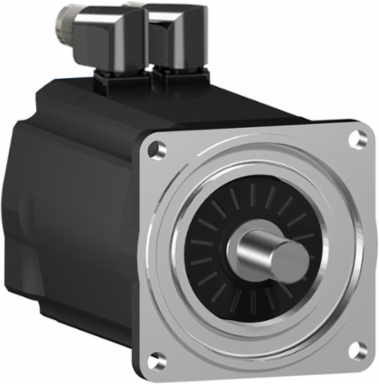

Schneider Electric SH31003P01A2100 Servo Motor 100 mm Flange, 8 Nm Torque, 6000 RPM, IP65
- MPN: SH31003P01A2100
- PPN: SCH-SH31003P01A2100
CAD
$4469.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for precision and reliability, the Schneider Electric SH31003P01A2100 Servo Motor is an exceptional choice for motion control applications. With a robust 100 mm flange and an impressive torque of 8 Nm, this motor excels in delivering high performance at speeds of up to 6000 RPM. Additionally, its IP65 rating ensures protection against dust and water, making it suitable for demanding environments. This servo motor is a vital component for automation and control systems, providing enhanced efficiency and reliability in various industrial applications.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 28.3 N.m 115...480 V three phase
- Nominal Torque
- 5.1 N.m 480 V three phase || 7.5 N.m 115 V single phase || 7 N.m 230 V single phase || 5.7 N.m 400 V three phase
- Continuous Power
- 2400 W
- Nominal Speed
- 1000 rpm 115 V single phase || 2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase
- Continuous Stall Current
- 6.6 A
- Back Emf Constant
- 77 V/krpm 20 °C
- Maximum Radial Force Fr
- 1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm || 660 N 4000 rpm
- Motor Flange Size
- 100 mm
- Shaft Length
- 40 mm (1.57 in)
- Centring Collar Depth
- 3.5 mm (0.14 in)
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 115 mm
- Material
- Not specified
- Environmental Compliance
- RoHS, Mercury Free, PVC Free, REACh Declaration, EU RoHS Pro-active compliance
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Weee
- EU waste disposal compliant
- Country of Origin
- DE
- Device Short Name
- SH3.....P
Continuous Stall Torque8 N.m 115...480 V three phase
Nominal Output Power790 W 115 V single phase || 1470 W 230 V single phase || 2390 W 400 V three phase || 2560 W 480 V three phase
Maximum Mechanical Speed6000 rpm
Maximum Current Irms28.3 A
Torque Constant1.22 N.m/A 120 °C
Number Of Motor Poles4
Maximum Axial Force Fa160 N
Shaft Diameter19 mm (0.75 in)
Centring Collar Diameter95 mm (3.74 in)
Mounting SupportInternational standard flange
Mounting Holes Diameter9.0 mm
Length240.5 mm (9.47 in)
Type Of CoolingNatural convection
China Rohs RegulationX
Pvc FreeYes
Reach RegulationContains SVHC above threshold
Warranty18 months
Product Or Component Typeservo motor
