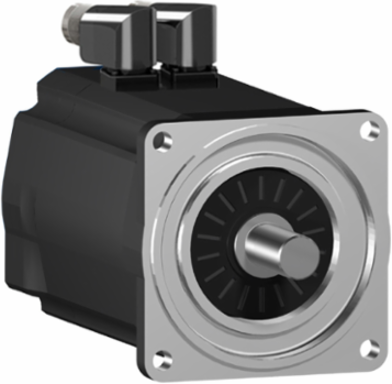

Schneider Electric SH31404P12F2000 Servo Motor 33.4 Nm, 420.5 mm Length, IP54/IP65, 4 k RPM
Schneider Electric SH31404P12F2000 Servo Motor 33.4 Nm, 420.5 mm Length, IP54/IP65, 4 k RPM
- MPN: SH31404P12F2000
- PPN: SCH-SH31404P12F2000
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric SH31404P12F2000 Servo Motor is engineered to deliver exceptional performance in motion control applications. With a torque rating of 33.4 Nm and a robust length of 420.5 mm, this motor is capable of precise and reliable operation, making it ideal for various automation and control tasks. Its dual IP54/IP65 rating ensures protection against dust and water, suitable for both industrial and challenging environments. Capable of reaching speeds of 4,000 RPM, this servo motor stands out as a versatile solution for engineers and developers seeking efficiency and reliability in their motion control systems.
Specifications
- Rated Supply Voltage
- 115-480 V
- Maximum Current Irms
- 95.6 A
- Nominal Output Power
- 2370 W (115 V single phase), 4130 W (230 V single phase), 4040 W (400 V three phase), 4190 W (480 V three phase)
- Peak Stall Torque
- 131.9 Nm (115...480 V three phase)
- Nominal Speed
- 750 rpm (115 V single phase), 1500 rpm (230 V single phase), 3000 rpm (400 V three phase), 3600 rpm (480 V three phase)
- Torque
- 33.4 Nm
- Maximum Radial Force
- 2660 N (1000 rpm), 2110 N (2000 rpm), 1840 N (3000 rpm)
- Length
- 420.5 mm
- Shaft Length
- 50 mm
- Mounting Holes Diameter
- 11 mm
- Number Of Mounting Holes
- 4
- Centring Collar Diameter
- 130 mm
- Shaft End
- Parallel key
- Material
- Natural convection cooling
- Torque Constant
- 1.57 N.m/A 120 °C
- Number Of Motor Poles
- 5
- Stator Resistance
- 0.28 Ohm
- Encoder Type
- Absolute multiturn SinCos Hiperface
- Electrical Connection
- Rotatable right angled connector
- Compliance
- EU RoHS, Mercury Free, PVC Free
Continuous Stall Current21.3 A
Continuous Power4040 W
Continuous Stall Torque33.4 Nm (115...480 V three phase)
Nominal Torque30.2 Nm (115 V single phase), 26.3 Nm (230 V single phase), 12.9 Nm (400 V three phase), 11.1 Nm (480 V three phase)
Maximum Mechanical Speed4000 rpm
Holding Torque36 Nm
Maximum Axial Force300 N
Shaft Diameter24 mm
Key Width8 mm
Circle Diameter Of The Mounting Holes165 mm
Motor Flange Size140 mm
Centring Collar Depth3.5 mm
Mounting SupportInternational standard flange
Type Of CoolingNatural convection
Back EMF Constant104 V/krpm 20 °C
Rotor Inertia29.2 kg.cm²
Stator Inductance5.945 mH
Holding BrakeYes
IP RatingIP54 shaft bushing without shaft seal ring; IP65 motor and shaft bushing (EN/IEC 60034-5)
Country of OriginDE
