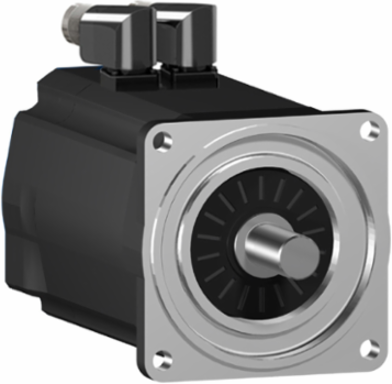

Schneider Electric SH31404P12A2000 Servo Motor 33.4 Nm, 4000 RPM, IP54/IP65, 26 kg
Schneider Electric SH31404P12A2000 Servo Motor 33.4 Nm, 4000 RPM, IP54/IP65, 26 kg
- MPN: SH31404P12A2000
- PPN: SCH-SH31404P12A2000
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Designed for high-performance applications in motion control systems, this servo motor from Schneider Electric offers an impressive torque of 33.4 Nm and a maximum speed of 4000 RPM, making it suitable for various automated tasks. Its robust IP54/IP65 rating ensures reliable operation in challenging environments, providing protection against dust and water ingress. Weighing 26 kg, this motor combines power with durability, making it an excellent choice for industries requiring precise control and efficiency in their automated processes. Whether you need consistent performance in manufacturing or robotics, this servo motor stands out for its quality and reliability.
Specifications
- Rated Supply Voltage
- 115...480 V
- Phase
- Three phase
- Continuous Stall Torque
- 33.4 N.m (115...480 V three phase)
- Maximum Current Irms
- 95.6 A
- Nominal Output Power
- 2370 W (115 V single phase), 4130 W (230 V single phase), 4040 W (400 V three phase), 4190 W (480 V three phase)
- Nominal Speed
- 750 rpm (115 V single phase), 1500 rpm (230 V single phase), 3000 rpm (400 V three phase), 3600 rpm (480 V three phase)
- Torque Constant
- 1.57 N.m/A at 120 °C
- Torque
- 33.4 N.m
- Maximum Axial Force
- 300 N
- Weight
- 26 kg
- Motor Flange Size
- 140 mm (5.51 in)
- Shaft Length
- 50 mm (1.97 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 165 mm (6.50 in)
- Centering Collar Depth
- 3.5 mm (0.14 in)
- Encoder Type
- Absolute multiturn SinCos Hiperface
- Cooling Type
- Natural convection
- IP Degree of Protection
- IP54 shaft bushing without shaft seal ring, IP65 motor and shaft bushing (EN/IEC 60034-5)
- Mercury Free
- Yes
- Warranty
- 18 months
Number of Motor Poles5
Peak Stall Torque131.9 N.m (115...480 V three phase)
Continuous Stall Current21.3 A
Continuous Power4040 W
Nominal Torque30.2 N.m (115 V single phase), 26.3 N.m (230 V single phase), 12.9 N.m (400 V three phase), 11.1 N.m (480 V three phase)
Maximum Speed4000 rpm
Back EMF Constant104 V/krpm at 20 °C
Maximum Radial Force2660 N (1000 rpm), 2110 N (2000 rpm), 1840 N (3000 rpm)
Length382.5 mm (15.06 in)
Mounting SupportInternational standard flange
Shaft Diameter24 mm (0.94 in)
Key Width8 mm (0.31 in)
Mounting Holes Diameter11 mm (0.43 in)
Centering Collar Diameter130 mm (5.12 in)
Shaft EndParallel key
Speed Feedback Resolution128 periods
Electrical ConnectionRotatable right angled connector
RoHS CompliancePro-active compliance
PVC FreeYes
Country of OriginGermany
