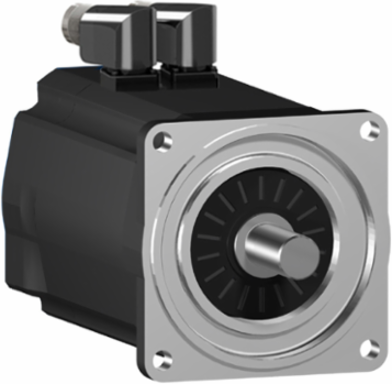

Schneider Electric SH31404P11A2000 Servo Motor 33.4 Nm, 4000 RPM, 140 mm Flange, IP54/IP65
- MPN: SH31404P11A2000
- PPN: SCH-SH31404P11A2000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric SH31404P11A2000 is a high-performance servo motor designed for automation and motion control applications. With a robust torque rating of 33.4 Nm and a rapid maximum speed of 4000 RPM, this motor excels in delivering precise control and dynamic response. Its 140 mm flange size ensures compatibility with various mounting configurations, while the IP54/IP65 rating provides reliable protection against dust and water ingress, making it suitable for use in diverse environments. This servo motor is an essential component for achieving enhanced efficiency and accuracy in your automation systems.
Documentation & Downloads
Specifications
Additional
- Nominal Output Power
- 2370 W 115 V single phase || 4130 W 230 V single phase || 4040 W 400 V three phase || 4190 W 480 V three phase
- Continuous Stall Torque
- 33.4 N.m 115...480 V three phase
- Nominal Torque
- 30.2 N.m 115 V single phase || 26.3 N.m 230 V single phase || 12.9 N.m 400 V three phase || 11.1 N.m 480 V three phase
- Maximum Speed
- 4000 rpm
- Continuous Stall Current
- 21.3 A
- Phase
- Three phase
- Back EmF Constant
- 104 V/krpm 20 B0C
- Maximum Radial Force
- 2660 N 1000 rpm || 2110 N 2000 rpm || 1840 N 3000 rpm
- Type Of Cooling
- Natural convection
- Flange Size
- 140 mm (5.51 in)
- Centring Collar Depth
- 3.5 mm (0.14 in)
- Mounting Holes Diameter
- 11 mm (0.43 in)
- Shaft Diameter
- 24 mm (0.94 in)
- Key Width
- 8 mm (0.31 in)
- Mounting Support
- International standard flange
- Speed Feedback Resolution
- 128 periods
- Material
- Not specified
- Warranty
- 18 months
Continuous Power4040 W
Peak Stall Torque131.9 N.m 115...480 V three phase
Nominal Speed750 rpm 115 V single phase || 1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase
Maximum Current Irms95.6 A
Rated Supply Voltage115...480 V
Torque Constant1.57 N.m/A 120 B0C
Number Of Motor Poles5
Maximum Axial Force300 N
Length382.5 mm (15.06 in)
Centring Collar Diameter130 mm (5.12 in)
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes165 mm (6.50 in)
Shaft Length50 mm (1.97 in)
Electrical ConnectionRotatable right angled connector
Encoder TypeAbsolute single turn SinCos Hiperface
Net Weight26 kg (57.32 lb)
ComplianceMercury free, PVC free, EU RoHS pro-active compliance
Country Of OriginGermany (DE)
