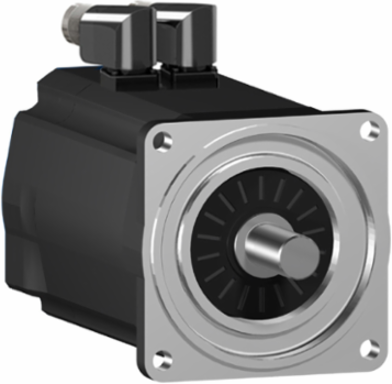

Schneider Electric SH31404P02A2000 Servo Motor 33.4 Nm Torque, 140 mm Flange, 4000 RPM, IP54/IP65
- MPN: SH31404P02A2000
- PPN: SCH-SH31404P02A2000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for high-performance applications, this servo motor from Schneider Electric delivers an impressive torque of 33.4 Nm and operates efficiently at speeds up to 4000 RPM. The 140 mm flange size is ideal for a variety of automation and motion control systems, ensuring seamless integration into your setup. With its IP54/IP65 rating, this motor offers robust protection against dust and water, making it suitable for demanding environments. Whether for industrial automation or precision motion control, this servo motor stands out for its reliability and efficiency.
Documentation & Downloads
Specifications
Additional
- Torque Constant
- 1.57 N.m/A 120 °C
- Peak Stall Torque
- 131.9 N.m 115...480 V three phase
- Nominal Torque
- 30.2 N.m 115 V single phase || 26.3 N.m 230 V single phase || 12.9 N.m 400 V three phase || 11.1 N.m 480 V three phase
- Continuous Power
- 4040 W
- Maximum Current Irms
- 95.6 A
- Torque
- 33.4 Nm
- Rotor Inertia
- 23.7 kg.cm²
- Stator Inductance
- 5.945 mH
- Shaft Diameter
- 24 mm
- Length
- 382.5 mm
- Centring Collar Depth
- 3.5 mm
- Mounting Holes Diameter
- 11 mm
- Shaft End
- smooth shaft
- Electrical Connection
- rotatable right angled connector
- Maximum Radial Force
- 2660 N 1000 rpm || 2110 N 2000 rpm || 1840 N 3000 rpm
- Type Of Cooling
- natural convection
- Number Of Motor Poles
- 5
- Speed Feedback Resolution
- 128 periods
- Country of Origin
- DE
- REACH Compliance
- Reference contains Substances of Very High Concern above the threshold
- PVC Free
- Yes
Continuous Stall Torque33.4 N.m 115...480 V three phase
Nominal Output Power2370 W 115 V single phase || 4130 W 230 V single phase || 4040 W 400 V three phase || 4190 W 480 V three phase
Nominal Speed750 rpm 115 V single phase || 1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase
Maximum Mechanical Speed4000 rpm
Continuous Stall Current21.3 A
Back Emf Constant104 V/krpm 20 °C
Stator Resistance0.28 Ohm
Motor Flange Size140 mm
Shaft Length50 mm
Centring Collar Diameter130 mm
Number of Mounting Holes4
Circle Diameter Of The Mounting Holes165 mm
Mounting Supportinternational standard flange
IP Degree Of ProtectionIP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5 || IP65 motor: conforming to IEC 60034-5 || IP65 shaft bushing: conforming to IEC 60034-5
Maximum Axial Force300 N
Network Number Of Phasesthree phase
Encoder Typeabsolute multiturn SinCos Hiperface
Net Weight26 kg
RoHS CompliancePro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Warranty18 months
