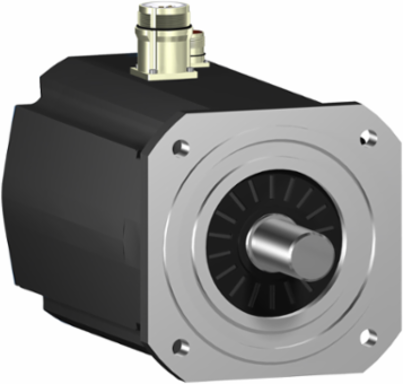

Schneider Electric SH32051P12F1100 Servo Motor 205 mm, 36.9 Nm, 3 Phase, IP65, 3800 RPM
- MPN: SH32051P12F1100
- PPN: SCH-SH32051P12F1100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for precision and robust performance, this servo motor from Schneider Electric is designed to meet the demanding needs of motion control applications. Featuring a compact 205 mm form factor, it delivers a substantial torque of 36.9 Nm, making it suitable for various automation tasks. With its three-phase operation and a high-speed capability of up to 3800 RPM, this motor ensures efficient and responsive performance. Moreover, it boasts an IP65 rating, providing excellent protection against dust and moisture, which enhances its reliability in challenging industrial environments.
Documentation & Downloads
Specifications
Additional
- Continuous Stall Torque
- 36.9 N.m 115...480 V three phase
- Holding Torque
- 80 N.m
- Maximum Radial Force
- 3730 N 1000 rpm, 2960 N 2000 rpm, 2580 N 3000 rpm
- Nominal Output Power
- 2510 W 115 V single phase, 4240 W 230 V single phase, 5500 W 400 V three phase, 5200 W 480 V three phase
- Nominal Speed
- 750 rpm 115 V single phase, 1500 rpm 230 V single phase, 3000 rpm 400 V three phase, 3600 rpm 480 V three phase
- Maximum Current Irms
- 87.2 A
- Phase
- Three phase
- Back Emf Constant
- 104 V/krpm 20 0C
- Stator Resistance
- 0.3 Ohm
- Rotor Inertia
- 87.4 kg.cmb2
- Shaft Length
- 80 mm
- Shaft End
- Parallel key
- Mounting Support
- International standard flange
- Mounting Holes Diameter
- 14 mm
- Centring Collar Diameter
- 180 mm
- Length
- 370.5 mm
- Electrical Connection
- Rotatable right angled connector
- Encoder Type
- Absolute multiturn SinCos Hiperface
- Holding Brake
- With
- Compliance
- RoHS, Mercury free, PVC free
Peak Stall Torque110 N.m 115...480 V three phase
Maximum Axial Force740 N
Maximum Mechanical Speed3800 rpm
Nominal Torque31.9 N.m 115 V single phase, 27 N.m 230 V single phase, 17.5 N.m 400 V three phase, 13.8 N.m 480 V three phase
Continuous Stall Current21 A
Voltage115...480 V
Torque Constant1.6 N.m/A 120 0C
Number of Motor Poles5
Stator Inductance8.7 mH
Shaft Diameter38 mm
Key Width10 mm
Motor Flange Size205 mm
Number of Mounting Holes4
Circle Diameter of Mounting Holes215 mm
Centring Collar Depth4 mm
Net Weight38.6 kg
IP Degree of ProtectionIP65 motor and shaft bushing conforming to EN/IEC 60034-5
Speed Feedback Resolution128 periods
Type of CoolingNatural convection
Range CompatibilityPacDrive 3
