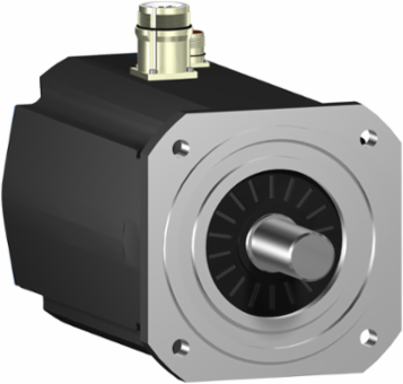

Schneider Electric SH32051P12F1000 Servo Motor 36.9 Nm, 3 Phase, 3.8 k RPM, IP54/IP65
- MPN: SH32051P12F1000
- PPN: SCH-SH32051P12F1000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This powerful servo motor from Schneider Electric is engineered for high-performance motion control applications, delivering an impressive torque of 36.9 Nm. With a robust three-phase design, it operates at a remarkable speed of up to 3.8 k RPM, ensuring precision and responsiveness in dynamic settings. Designed to withstand harsh environments, it offers IP54/IP65 protection, making it suitable for a wide range of industrial applications. This servo motor is an optimal choice for those looking to enhance automation and control systems with reliable and efficient solutions.
Documentation & Downloads
Specifications
Additional
- Continuous Power
- 5500 W
- Nominal Output Power
- 2510 W (115 V single phase), 4240 W (230 V single phase), 5500 W (400 V three phase), 5200 W (480 V three phase)
- Maximum Current Irms
- 87.2 A
- Nominal Speed
- 750 rpm (115 V single phase), 1500 rpm (230 V single phase), 3000 rpm (400 V three phase), 3600 rpm (480 V three phase)
- Continuous Stall Torque
- 36.9 N.m (115...480 V three phase)
- Holding Torque
- 80 N.m
- Torque Constant
- 1.6 N.m/A (120 °C)
- Number of Motor Poles
- 5
- Maximum Axial Force
- 740 N
- Length
- 370.5 mm (14.59 in)
- Shaft Length
- 80 mm (3.15 in)
- Motor Flange Size
- 205 mm (8.07 in)
- Circle Diameter of Mounting Holes
- 215 mm (8.46 in)
- Centring Collar Diameter
- 180 mm (7.09 in)
- Mounting Support
- International standard flange
- Shaft End
- parallel key
- IP Degree of Protection
- IP54 shaft bushing without shaft seal ring, IP65 motor and shaft bushing (EN/IEC 60034-5)
- Speed Feedback Resolution
- 128 periods
- Stator Resistance
- 0.3 Ohm
- China RoHS Regulation
- Compliant
- EU RoHS Directive
- Pro-active compliance (product out of scope)
- Mercury Free
- Yes
- REACH Regulation
- Contains SVHC above threshold
- Product Type
- servo motor
- Warranty
- 18 months
- Device Short Name
- SH3.....P
Rated Supply Voltage115...480 V
Continuous Stall Current21 A
Maximum Speed3800 rpm
Peak Stall Torque110 N.m (115...480 V three phase)
Nominal Torque31.9 N.m (115 V single phase), 27 N.m (230 V single phase), 17.5 N.m (400 V three phase), 13.8 N.m (480 V three phase)
Torque36.9 N.m
Back EMF Constant104 V/krpm (20 °C)
Maximum Radial Force3730 N (1000 rpm), 2960 N (2000 rpm), 2580 N (3000 rpm)
PhaseThree phase
Shaft Diameter38 mm (1.50 in)
Key Width10 mm (0.39 in)
Mounting Holes Diameter14 mm (0.55 in)
Number of Mounting Holes4
Centring Collar Depth4 mm (0.16 in)
Electrical ConnectionRotatable right angled connector
Cooling TypeNatural convection
Encoder TypeAbsolute multiturn SinCos Hiperface
Stator Inductance8.7 mH
Rotor Inertia87.4 kg.cm²
RoHS Exemption InformationYes
PVC FreeYes
WEEEMust be disposed in EU markets properly
Environmental DisclosureENVPEP111049EN
Range CompatibilityPacDrive 3
Sustainable Offer StatusGreen Premium product
Circularity ProfileN/A
