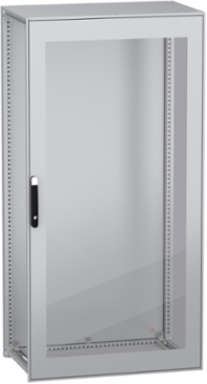

Schneider Electric NSYSFN201060T Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, glazed door, 2000x1000x600mm, IP55
- MPN: NSYSFN201060T
- PPN: SCH-NSYSFN201060T
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

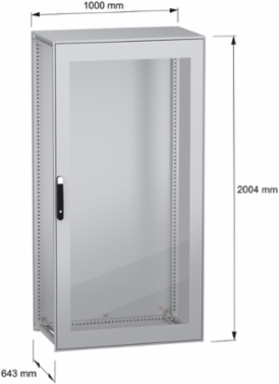

This PanelSeT SFN is a floor standing modular decarbonized steel electrical enclosure that is suitable for multi-purpose applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. It has a nominal height, width, and depth of 2000 mm, 1000 mm and 600 mm, respectively. The frame and uprights of the enclosure are made of galvanized steel for durability. The door is made of steel sheet and Securit glass and the panels are made of steel sheets, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color with a black (RAL 9005) handle, one glazed door, one rear panel, one roof, two sliding rails and one set of quick-fixing mounting plate brackets. The door has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. The door has a four-point lock with a handle that has a 5 mm double-bar insert for security. The enclosure has an IP55 rating, which makes it resistant to dust, water and oil ingress. The enclosure is also resistant to impacts, with an IK08 rating. Operation is convenient due to rear, front, and side access.
Features
- Sustainable design that contains recycled steel manufactured with renewable energy to face environmental challenges.
- IEC and UL compliant making it sturdy, robust, and durable for maximum component protection.
- Available in mounted, kit, and customized versions to optimize your configurations coping with specific needs.
- Ergonomic design for convenience & time-saving operations.
- Large choice of dimensions & accessories to simplify mounting and installation of electrical equipment.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain |
|---|
| Weight | 105200 g |
|---|
Physical Attributes
| Color | enclosure Gray RAL 7035), handle Black RAL 9005) |
|---|---|
| Enclosure Nominal Width | 1000 mm |
| Enclosure Nominal Height | 2000 mm |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |

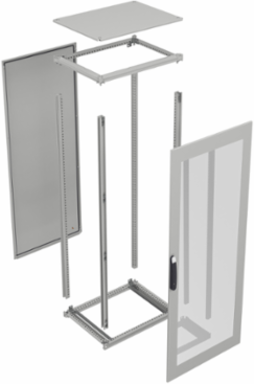

| Device Composition | 2 sliding rails4 mounting plate quick-fixing brackets1 structure, 1 door1 locking system with handle door, 1 rear panel, 1 roof |
| Removable Parts | door by screws hinge, rear panel by screws, roof by screws, mounting plate bracket by screws, sliding rail by screws |
| Carbon Footprint Of The Distribution Phase A4 | 19.94775218, 20 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 28.24123477, 28 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-24 |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | multi-purpose |
| Door Type | Glass front |
| Energy Efficiency Optimized | False |
| Mounting Plate Description | without mounting plate |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | suitable enclosure |
| Returnability | No |
| Surface Finish | epoxy-polyester powder |
| Total Lifecycle Carbon Footprint | 557 kg CO2 eq. |
| Database Version | 2022-01 |
| Certificate Agency | IEC 62208 |
| Customs Code | 9403200090 |
| Functional Unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 97 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Material | frame galvanised steel, uprights galvanised steeldoor Securit glass, door sheet steel, panels sheet steelhinge zamakhandle polyamide 6 with 30 % fibre glass |
| Structure Type | formed from a single section, perforated structure with a pitch of 25 mm, panels and doors built into the structure, vertical uprights joined with top and bottom frames |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 238 kg CO2 eq., 238.2926663 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 271 kg CO2 eq., 270.5837541 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2507020EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2306 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 45 % |

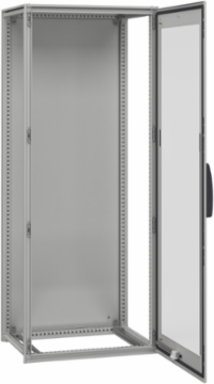

| Door Opening Side | reversible 120 °) |
| Enclosure Mounting | floor-standing |
| Lock Type | 4 points lock, handle with 5 mm double bar insert front door |
| Number Of Doors | front 1 |
| Product Name | PanelSeT SFN |
| Range | PanelSeT |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Type Of Gland Plate | without gland plate |
| Data Source | extrapolated product |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 557.0654073 |
| Environmental Disclosure | ENVPEP2301018EN |
| Ip Degree Of Protection | IP55 IEC 60529 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-07-31 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Recycled Metal Content At Cr Level | 45 % |
|---|---|
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2507020EN |
| Eu Rohs Directive | Compliant By Exemption |
| Nema Degree Of Protection | NEMA 3R/12 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2301018EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | suitable enclosure |
|---|
ETIM
| ETIM 8 | EC000261 |
|---|---|
| ETIM 10 | EC000261 |
| ETIM 9 | EC000261 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
