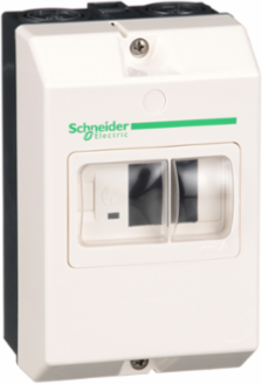

Schneider Electric GV2MC02 TeSys IP55 Surface Mount Enclosure, 147 mm Height, 93 mm Width
- MPN: GV2MC02
- PPN: SCH-GV2MC02
CAD
$107.57
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1.
Features
- The Schneider Electric (TeSys) GV2MC02 is a surface-mount enclosure designed specifically to house GV2ME manual motor starters. While the GV2ME unit provides the electrical protection, this enclosure provides the physical environment, allowing you to mount a motor starter directly to a wall or machine rather than inside a large electrical panel.
- The defining feature of the GV2MC02 is its IP55 rating. In the Canadian industrial context, this means the enclosure is protected against dust ingress and low-pressure water jets from any direction. It is a significant upgrade over the standard GV2MC01 (which is only IP41/NEMA 1), making it suitable for damp warehouses, food processing areas, or dusty workshops.
- The enclosure is made from high-impact polycarbonate. This material is non-conductive, providing a double-insulated environment that eliminates the need for a separate grounding connection for the box itself (though the motor protector inside still requires proper bonding). It is also highly resistant to chemical agents and UV exposure.
- The enclosure is designed to be paired with external operators (sold separately) to allow for safe machine control without opening the cover. It can accommodate: GV2K011 / GV2K021: Start/Stop pushbuttons. GV2K04: Mushroom-head emergency stop buttons. This modularity allows a Canadian electrician to build a custom "local" motor starter station tailored to the specific needs of the machine.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France, United Kingdom, Mexico |
|---|
| Depth | 84 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Auxiliary Mounting Location | left, right |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2 kg CO2 eq., 2.450926256908761 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 9 kg CO2 eq., 9.374240146139641 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2107010 |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2538 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | GV2MC |
| Environmental Characteristic | standard environment |
| Product Or Component Type | enclosure |
| Range Of Product | TeSys GV2 |
| Software Version | v6.1 |
| Total Lifecycle Carbon Footprint | 107 kg CO2 eq. |
| Pep Code | ENVPEP2107010EN |
| Pep Verification Date | 2024-08-02 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2035; China, CN |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Height Nominal | 147 mm |
| Certificate Agency | UKCA |
| Enclosure/Cubicle Description | surface mounting |
| Package Weight(Lbs) | 293.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1258766698354385, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.00469767590264559, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 95 kg CO2 eq., 95.1464883670669 |
| Local Publishable Date | 2026-07-07 |
| Stocking Flag | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | GV2MC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | TeSys |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functions |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 232.14 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Width Nominal | 93 mm |
| Accessory / Separate Part Category | mounting accessory |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908120 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 107.10222911585338 |
| Environmental Disclosure | ENVPEP2107010EN |
| Ip Degree Of Protection | IP55 |
| Packaging Without Single Use Plastic | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2107010EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2107010 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | GV2ME |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-08-02 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | enclosure |
|---|
| Range Of Product | TeSys GV2 |
|---|
ETIM
| ETIM 8 | EC000712 |
|---|
| ETIM 9 | EC000712 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
