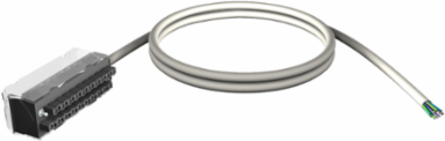

Schneider Electric BMXFTW501S Modicon X80 Shielded Cord Set, 20-Way Terminal, 5m Length
- MPN: BMXFTW501S
- PPN: SCH-BMXFTW501S
CAD
$309.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This cordset is an accessory of I/O module. The length of this cable is 5m. This product is robust, high quality and based on the latest innovative technology. It is furnished with free-end color-coded flying leads (conforming to DIN 47100) and 20-way removable terminal block for module side. It weighs 0.7kg. It is suitable for medium to large process applications. This cordset is compatible with Modicon X80 BMXAMO0210 analogue output module, Modicon X80 BMXAMM0600 analogue I/O module and Modicon X80 BMXAMO0210 analogue output module. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Tunisia, United States
Physical Attributes
- Cable Length
- 5 m
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Electrical Connection
- 1 free end with color-coded flying leads, 1 removable terminal block 20 ways module side
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 1.9054081914633907
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 4 kg CO2 eq., 3.7540164383801984
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Range Of Product
- Modicon X80
- Software Version
- v6.2.2
- Total Lifecycle Carbon Footprint
- 113 kg CO2 eq.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To conduct the current passively during 20 years at 100% use rate.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Tunisia, TN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; United States, US
- Accessory / Separate Part Type
- preformed cordset
- Package Weight(Lbs)
- 691.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Carbon Footprint Of The Distribution Phase [A4]1.3487246491938902, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00048740756632986113, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]106 kg CO2 eq., 105.545069309425
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityNo
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2411005EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1851
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationIndustrial
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Sustainable PackagingNo
Pep CodeENVPEP2411005_V1-EN
Pep Verification Date2024-11-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; United States, US
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; United States, US
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Product Compatibility
- BMXAMI0410, BMXAMM0600, BMXAMO0210
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2411005EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-11-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint112.55370599602881
Environmental DisclosureENVPEP2411005_V1-EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2411005_V1-EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Range Of Product
- Modicon X80
ETIM
- ETIM 8
- EC000237
ETIM 9EC000237
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
