Schneider Electric BMXXSP1200 Modicon X80 Shielding Connection Kit for 12 Slot Backplane, 0.4 kg
- MPN: BMXXSP1200
- PPN: SCH-BMXXSP1200
CAD
$166.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

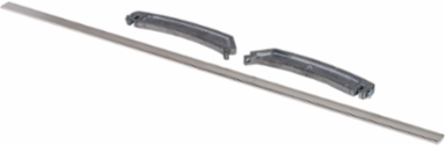

This cable shielding connection kit is part of the Modicon X80 modules. This kit is used to protect against electrostatic discharge when connecting the shielding on cordsets for connecting I/O modules. It is mounted under the rack holding the I/O modules. It is used for connecting analog, counter and motion control modules. It is also used to connect Magelis XBT operator interface to the processor. It comprises, 1 metal bar that takes the clamping rings and the earthing terminal and 2 support bases to be mounted on the rack.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Italy, United States |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Kit Composition | two sub-bases, a metal bar |
| Local Publishable Date | 2026-07-27 |
| Stocking Flag | N |
| Device Type | PLC System - PLC Component |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2023 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Number Of Slots | 12 |
| Product Or Component Type | connector kit |
| Returnability | Yes |
| Accessory / Separate Part Destination | backplane |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536908585 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | Out |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon X80 |
| Sustainable Packaging | No |
| Accessory / Separate Part Type | shielding connection kit |
| Package Weight(Lbs) | 416.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Free Of Svhc | Yes |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | 12 slot backplane |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | connector kit |
|---|
| Range Of Product | Modicon X80 |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|
| ETIM 9 | EC002584 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
