Schneider Electric

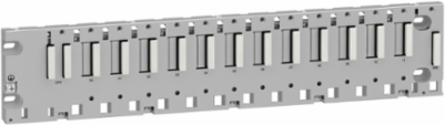

Schneider Electric BMXXBP1200 Backplane, Modicon X80, 12 slots, panel, mounting plate mounted

Backplane, Modicon X80, 12 slots, panel, mounting plate mounted
  • MPN: BMXXBP1200
  • PPN: SCH-BMXXBP1200

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$733.51/ EA

    Description

    This 12 slots X-bus rack is part of the Modicon X80 modules. Number of slots comprises processor, I/O, communication and application-specific modules (excluding power supply module). It can be mounted on DIN rail and its weight is 1.270kg.

    Specifications

    Environment

    Ambient Air Temperature For Operation
    0-60 °C
    Product Certifications
    CE || UL || CSA || RCM || EAC || UKCA || Merchant Navy
    Relative Humidity
    10-95 % without condensation
    StandardsEN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G
    Directives2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    Ip Degree Of ProtectionIP20

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP2203018EN
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    China Rohs Regulation
    X
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileENVEOLI2203018EN

    Complementary

    Fixing Mode
    by 4 M4/M5/M6 screws panel || by 4 M4/M5/M6 screws mounting plate
    Electrical Connection
    1 connector (XBE) expansion module
    Number Of Slots
    12 bus X
    Width
    503.2 mm
    Product Compatibility
    BMXP34 processor || BMXCPS power supply || I/O module || specific application module
    Height103.7 mm
    Power Consumption In W0.17 W
    Net Weight1.27 kg
    Depth19 mm

    Specifications

    Range Of Product
    Modicon X80
    Product Or Component Typebackplane
