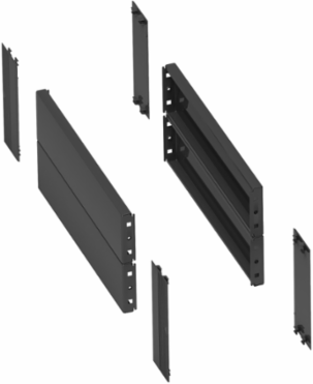

Schneider Electric NSYSPS5200 Side Panels for Electrical Enclosures, 500 mm x 200 mm, Set of 4
Schneider Electric NSYSPS5200 Side Panels for Electrical Enclosures, 500 mm x 200 mm, Set of 4
- MPN: NSYSPS5200
- PPN: SCH-NSYSPS5200
- UNSPSC: 39121327
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$47.45/ EA
Description
Spacial SF/SM side panel plinth - 200x500 mm. 200 x 500 mm. Multi-purpose application. Front plinth mounting support. Fixing mode by screws. Epoxy-polyester powder surface finish. Grey RAL 7022. IP30 complete plinth, IK10. 4 side panels.
Features
- They are fixed to the corner of the plinth by 2 fixing screws.
- Material: Folded sheet steel
- Finish: Structured finish, epoxy polyester powder
- Color: RAL 7022 grey
- Ingress protection rating: IP30 according to IEC 60529
- Mechanical protection rating: IK10 according to IEC 62262
Specifications
Physical Attributes
- Color
- Gray RAL 7022)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Application
- Prisma application, multi-purpose
- Enclosure Nominal Dimensions
- -, -
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 6 kg CO2 eq., 6.344937683
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 12 kg CO2 eq., 11.72747474
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Energy Efficiency Optimized
- False
- Mounting Support
- front plinth
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- PanelSeT
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 19 kg CO2 eq.
- Medium Desc
- Side panels for the plinth, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure D500mm, set of 4, H200mm
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; FR
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Compositionfixing elements, 4 corner cover, 4 side panel
Carbon Footprint Of The Distribution Phase A40.519552872, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.598460047, 0.6 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Fixing Modeby screws
Package Weight Lbs2.926 kg
Product Or Component Typeplinth side panel
ReturnabilityYes
Sustainable PackagingNo
Accessory Separate Part Category2enclosure accessory
Stocking FlagN
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunit
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 19.19042534
- IP Degree Of Protection
- IP20 complete plinth)
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- plinth side panel
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Width
- 19.69 in
Country of OriginTunisia
