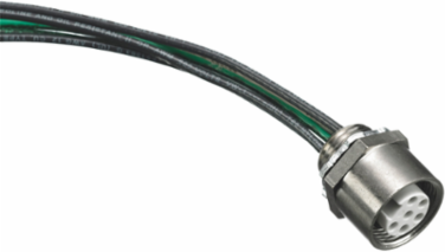

Hubbell Wiring Device-Kellems RF2005PA001 Linkosity Female Receptacle, 5-Wire, 20A 600V AC, 1 Inch Length
- MPN: RF2005PA001
- UPC: 783585358246
- PPN: HBL-RF2005PA001
- UNSPSC: 32151905
CAD
$240.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Signal and Control, Linkosity, Female Receptacle, 5-Wire, 20A 600V AC, PA Wire Code, 1' Length
Features
- Linkosity5-Wire
- 20A 600V AC
- Green/Yellow/Black Wires
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 5.000 in
- Application
- Power and Control Integration
- Conductor Size
- #12 AWG
- Number of Conductors
- 5
- Special Features
- Green/Yellow/Black Wires
- Wattage
- 12000
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- General Literature Asset 3 Display Text
- Linkosity Wiring System
- Nema Rating
- Non-NEMA
- Number Of Poles
- 5-Pole
- Description - Invoice
- LINKOSITY FEM REC 20A 5P, 1'
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Construction
- Fabricated
- Material
- Composite
- BOX SIZE
- 8.245x10.125x8.745 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585358246
- Each - Pack Description
- Each
- NAICS Code
- 335931A107
Current / Amperage Rating20 A
Amperage Rating20 A
ColorGray
NEMA RatingNon-NEMA
Number of Poles5-Pole
Voltage Rating600V Max kV
Engineering Drawing 1 Display TextRF2005PA001 AutoCAD Drawing
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Conductor TypeCopper
Number Of Conductors5
Class CodeA28
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA28A300
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack18.15 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50 EA
Lowest Level UOMEach
