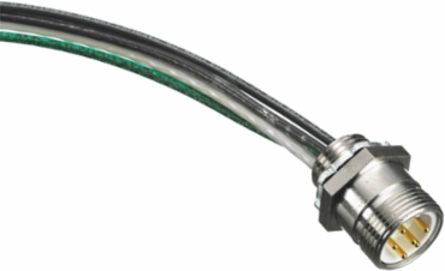

Hubbell Wiring Device-Kellems RM1006PE001S Linkosity Male Receptacle, 3-Wire, 10A 600V AC, Composite, 1 Inch
- MPN: RM1006PE001S
- UPC: 783585243443
- PPN: HBL-RM1006PE001S
- UNSPSC: 32151905
CAD
$329.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Signal and Control, Linkosity, Male Receptacle, 3-Wire, 10A 600V AC, PA Wire Code, 1' Length, Stainless
Features
- Linkosity
- Male Receptacle
- 3-Wire
- 10A 600V AC
- All Blue Wires
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 0.500 in
- Application
- Power and Control Integration
- Conductor Size
- #16 AWG
- Number of Conductors
- 6
- Special Features
- All Blue Wires
- Wattage
- 6000
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Conductor Type
- Copper
- Number Of Conductors
- 6
- Class Code
- A28
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A28A300
- Current Rating
- 10 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 7.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 50 EA
- Lowest Level UOM
- Each
Current / Amperage Rating10 A
Amperage Rating10 A
ColorGray
NEMA RatingNon-NEMA
Number of Poles6-Pole
Voltage Rating600V Max kV
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextLinkosity Wiring System
Nema RatingNon-NEMA
Number Of Poles6-Pole
Description - InvoiceLINKOSITY MALE RECEP 6P, 1FT, SS
Harmonization Code8536694020
MSDS FlagNo
ConstructionFabricated
MaterialComposite with Stainless Steel Body
BOX SIZE8.245x5.000x10.125 (in)
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack783585243443
Each - Pack DescriptionEach
NAICS Code335931A107
Certifications
- EU RoHS Indicator
- Yes
