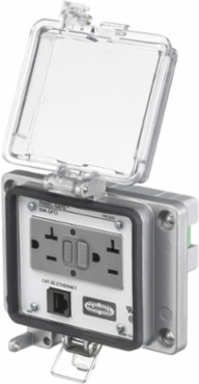

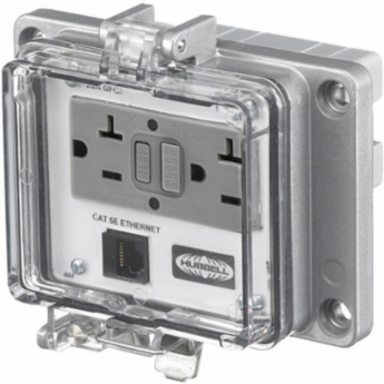

Hubbell Wiring Device-Kellems PR205E NEMA 12/4 Industrial Ethernet Enclosure, 15A 125V GFCI Receptacle, 4.8 Inch Width
- MPN: PR205E
- UPC: 783585524757
- PPN: HBL-PR205E
- UNSPSC: 32151903
CAD
$397.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PANEL-SAFE® Control Panel Interface, Cat 5e Ethernet, 15A/125V AC GFCI, UL Type 4 Enclosure
Features
- Protective clear cover
- Overcurrent protection
- Finger-safe contacts
- Stainless steel snap latch
- Standard Product
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Industry Standard(s) | cULus |
| Standards - RoHS Compliance Status | CM |
| Cable Entry | Plug-In |
| Depth | 3.2 in |
| Height | 5.1 in |
| Standard | cULus |
| Weight | 1.15 lb. |
| General Literature Asset 1 Display Text | Safety Product Guide |
| General Literature Asset 3 Display Text | Food Processing Guide |
| Class Code | A28 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A28A300 |
| Material | Polycarbonate, UV Rated, V-0 Flame Rated |
| BOX SIZE | 12.000x19.000x17.200 (in) |
| Carton - Number of Sub Packs | 20 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585524757 |
| Case Weight | 30.750 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 41.000 in |
| Pallet Weight | 323.488 lb. |
| NAICS Code | 335931A107 |
| Current / Amperage Rating | 15 A |
|---|---|
| Performance | Electrical - Data Jack - Cat. 5E;Electrical - 15A GFCI - Conforms to UL 943 2006 requirement;Electrical - In-Cabinet 15A Receptacle - GFCI protected;Environmental - Enclosure - UL Type 4 |
| Application | PANEL-SAFE®, UL type 4, CAT5E ETHERNET, 15A GFCI |
| Color | Gray, Clear |
| Enclosure | UL Type 4 |
| Special Features | Standard Product |
| Width | 4.8 in |
| Engineering Drawing 1 Display Text | PR205E AutoCAD Drawing |
| General Literature Asset 2 Display Text | Industrial Solutions |
| Enclosure Type | UL Type 4 |
| Description - Invoice | IE, NEMA 12/4, CAT5E ETHERNET, 20A GFCI |
| Harmonization Code | 8537109170 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 26.1 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 20 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585524756 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
Certifications
| EU RoHS Indicator | Yes |
|---|
