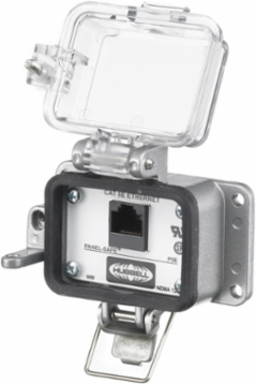

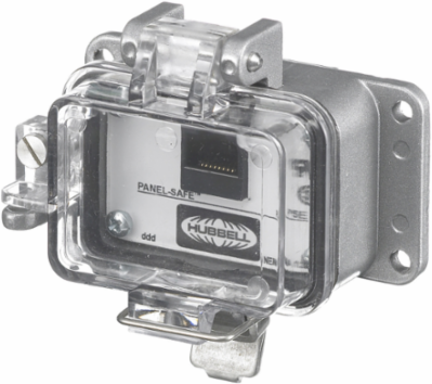

Hubbell Wiring Device-Kellems P5E NEMA 12/4 Ethernet Enclosure, Cat 5e, 3.2 Inch Height, 8.25 lb.
- MPN: P5E
- UPC: 783585524740
- PPN: HBL-P5E
- UNSPSC: 32151903
CAD
$266.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal and Control Products, Industrial Ethernet, NEMA 12/4 Enclosure, Cat 5e
Features
- Protective clear cover
- Overcurrent protection
- Finger-safe contacts
- Stainless steel snap latch
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- P5E AutoCAD Drawing
- General Literature Asset 2 Display Text
- Food Processing Guide
- Country of Origin
- United States
- Performance
- Electrical - Circuit Breaker - 3A;Electrical - Data Jack - Cat. 5e;Electrical - GFCI - Conforms to UL 943 2006 requirement;Electrical - In-Cabinet Receptacle - GFCI protected;Environmental - Enclosure - NEMA Type 4, 12 and NEMA Type 4X
- Cable Entry
- Plug-In
- Depth
- 1.9 in
- Height
- 3.2 in
- Standard
- CSA Certified;UL Recognized
- Enclosure Type
- NEMA 12/4
- Description - Invoice
- IE, NEMA 12/4, CAT5E ETHERNET
- Harmonization Code
- 8536699999
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.7 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A107
General Literature Asset 1 Display TextIndustrial Solutions
General Literature Asset 3 Display TextPulp & Paper Solutions
Industry Standard(s)CSA Certified;UL Recognized
ApplicationCat 5e Ethernet Access
ColorGray, Clear
EnclosureNEMA 12/4
Special FeaturesStandard Product
Width3.4 in
Class CodeA28
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA28A300
MaterialComposite
BOX SIZE7.500x12.500x12.500 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack783585524740
Case Weight8.250 lb.
Lowest Level UOMEach
