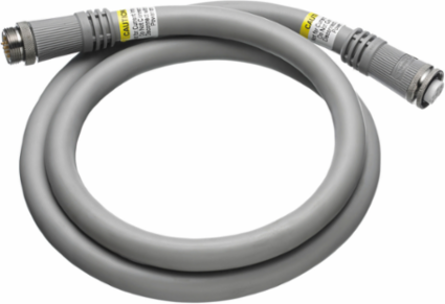

Hubbell Wiring Device-Kellems PH3004PA045 Linkosity 30A 4W Double Ended Cable 45 ft
- MPN: PH3004PA045
- UPC: 783585116310
- PPN: HBL-PH3004PA045
- UNSPSC: 32151902
CAD
$743.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal and Control Products, Linkosity, 30A 4W, Double Ended Cable, 5'
Features
- Linkosity
- 30A 4W
- Double Ended Cable
- 5'
- Green/Yellow/Black Wires
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Current / Amperage Rating
- 30 A
- Amperage Rating
- 30 A
- Color
- Gray
- Insulation
- PVC
- Plug Type
- Linkosity
- Strands
- Multi
- Voltage Rating
- 600 V
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- General Literature Asset 3 Display Text
- Linkosity Wiring System
- Number Of Poles
- 3-Pole
- Class Code
- A28
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A28A300
- Current Rating
- 30 A
- BOX SIZE
- 9.000x24.500x16.800 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585116310
- Each - Pack Description
- Each
- NAICS Code
- 335931A107
Cable Length45 ft
Width13.000 in
ApplicationQuick Connect/Disconnect Signal and Control
Conductor Size#10 AWG
Outside Diameter0.75
Special FeaturesGreen/Yellow/Black Wires
Temperature Rating-20 Deg C to 105 Deg C
Engineering Drawing 1 Display TextPH3004PA045 AutoCAD Drawing
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Conductor TypeCopper
Number Of Wires4-Wire
Description - InvoiceLINKOSITY DBL ENDED CBL, 30A 4W, 45'
Harmonization Code8544429090
MSDS FlagNo
ConstructionFabricated
Base Unit of MeasureEA
Carton - Gross Weight per Pack57 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Lowest Level UOMEach
