Bryant

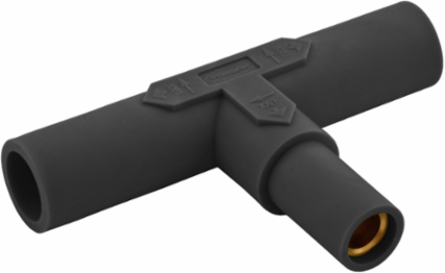

Bryant HBL15PTBK Paralleling Tee, 150 Amp, Black, Insulated Body, 1-Pole

Paralleling Tee, 150 Amp, Black, Insulated Body, 1-Pole
  • MPN: HBL15PTBK
  • UPC: 783585458571
  • PPN: HBL-HBL15PTBK
  • UNSPSC: 39121421

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$112.45/ EA

Description

Single Pole Products, Paralleling Tee, 150 Amp Series, Black

Features

  • Paralleling Tee
  • 150 Amp Series
  • Black
  • Standard Product

Specifications

Specifications

Country of Origin
CN
Width
0.700 in
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Application
Temporary Electrical Power
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
NEMA Rating
Non-NEMA
Number of Poles
1-Pole
Standard
National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Type
Tees and 3-Fers
Connectivity
Plug-In
Nema Rating
Non-NEMA
Number Of Poles
1-Pole
Description - Invoice
SINGLE POLE SER, 15 PARALLELING TEE, BK
Harmonization Code
8536698000
MSDS Flag
No
Current Rating
150 A
Series
15 Series
BOX SIZE
9.600x6.500x16.800 (in)
Carton - Number of Sub Packs
25
Carton - SCC-14 Next Lower Level Sub Pack
00783585458571
Current / Amperage Rating150 A
Each - Width0.700 in
Amperage Rating150 A
ColorBlack
InsulationInsulated Body
Number of Conductors1 Conductor
Special FeaturesStandard Product
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating Description600V AC/DC
Display SizeStandard
Number Of Conductors1 Conductor
StyleParalleling Tee Femal-Male-Male
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareCord Mounted
MaterialBrass and Non-Metallic
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.400 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA

Certifications
