Bryant

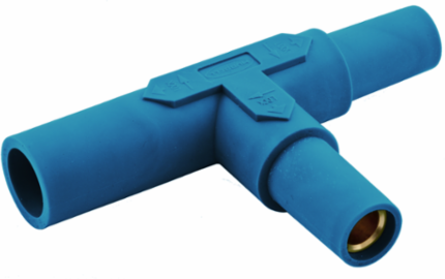

Bryant HBL15TBL Tapping Tee, 150 Amp, 1-Pole, Blue, Insulated Body, 2.5 Inch Width

Tapping Tee, 150 Amp, 1-Pole, Blue, Insulated Body, 2.5 Inch Width
  • MPN: HBL15TBL
  • UPC: 783585458632
  • PPN: HBL-HBL15TBL
  • UNSPSC: 39121421

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$119.20/ EA

Description

Single Pole Products, Tapping Tee, 150 Amp Series, Blue

Features

  • Tapping Tee
  • 150 Amp Series
  • Blue
  • Standard Product

Specifications

Specifications

Country of Origin
China
Width
2.500 in
Amperage Rating
150 A
Color
Blue
Insulation
Insulated Body
Number of Conductors
1 Conductor
Special Features
Standard Product
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating Description
600V AC/DC
Display Size
Standard
Number Of Conductors
1 Conductor
Style
Tapping Tee Female-Female-Male
Freight Class Code
06168002
Image Actual Or Representative
A
Material - Mounting Hardware
Cord Mounted
Material
Brass and Non-Metallic
Base Unit of Measure
EA
Carton - Gross Weight per Pack
8.900 lb.
Carton - Pack Description
Carton
Carton - Total Units
25 EA
Current / Amperage Rating150 A
Industry Standard(s)National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
ApplicationTemporary Electrical Power
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingNon-NEMA
Number of Poles1-Pole
StandardNational Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
TypeTees and 3-Fers
ConnectivityPlug-In
Nema RatingNon-NEMA
Number Of Poles1-Pole
Description - InvoiceSINGLE POLE SER, 15 TAPPING TEE, BL
Harmonization Code8536698000
MSDS FlagNo
Current Rating150 A
Series15 Series
BOX SIZE6.600x11.500x5.900 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack00783585458632
Case Weight8.800 lb.

Certifications

EU RoHS Indicator
Contact Manufacturer
