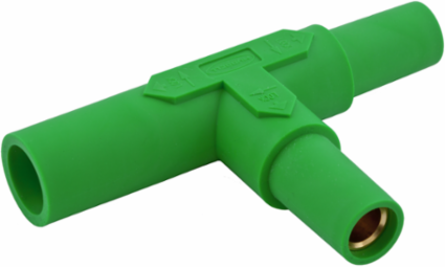

Bryant HBL15TGN Tapping Tee 150 Amp, 1-Pole, Green, Indoor Use, Brass Material
Bryant HBL15TGN Tapping Tee 150 Amp, 1-Pole, Green, Indoor Use, Brass Material
- MPN: HBL15TGN
- UPC: 783585458649
- PPN: HBL-HBL15TGN
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$112.45/ EA
Description
Single Pole Products, Tapping Tee, 150 Amp Series, Green
Features
- Tapping Tee
- 150 Amp Series
- Green
- Standard Product
Specifications
Specifications
- Country of Origin
- CN
- Width
- 2.700 in
- Industry Standard(s)
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Application
- Temporary Electrical Power
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- Non-NEMA
- Number of Poles
- 1-Pole
- Standard
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Type
- Tees and 3-Fers
- Connectivity
- Plug-In
- Nema Rating
- Non-NEMA
- Number Of Poles
- 1-Pole
- Description - Invoice
- SINGLE POLE SER, 15 TAPPING TEE, GN
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Current Rating
- 150 A
- Series
- 15 Series
- BOX SIZE
- 6.800x11.300x5.500 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585458649
- Case Weight
- 9.200 lb.
Current / Amperage Rating150 A
Each - Width2.700 in
Amperage Rating150 A
ColorGreen
InsulationInsulated Body
Number of Conductors1 Conductor
Special FeaturesStandard Product
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating Description600V AC/DC
Display SizeStandard
Number Of Conductors1 Conductor
StyleTapping Tee Female-Female-Male
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareCord Mounted
MaterialBrass and Non-Metallic
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.900 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
