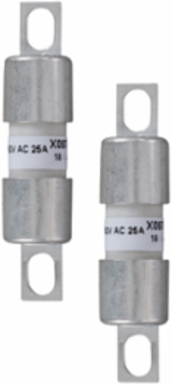

Mersen R076651 Protistor® BS88-4 17x27 aR High-Speed Fuse 250VAC 25A

MPN: R076651
PPN: FER-R076651

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$92.49/ EA

Qty:

Loading add to cart quantity...

Description

Extremely high breaking capacity fuses: Protection of power semiconductors as per IEC standard 60269-1 and -4 250 V voltage rating as per IEC 33 gR class as per VDE 636-23 and IEC 60269.4

Specifications

Rated voltage AC UL: 250 V

Rated voltage AC IEC: 250 V

ROHS Compliant: Yes

Speed/Characteristic: aR

Mounting: Bolted

Melting I2t: 30 A²s

Connection/Terminal Type: L Brackets

Power Dissipation at Rated Current Value: 4.8 W

Weight: 0.061 lb

Rated voltage DC UL300 V

Ampere Rating25 A

AC or DCAC

Fuse Size17x27

Clearing I2t At Rated Voltage160 A²s

Connection/Terminal MaterialCopper

Body/Insulating MaterialCeramic

Length2.14 in
