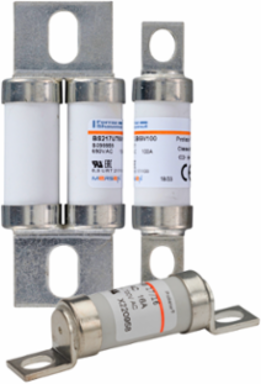

Mersen F220966 Protistor 17x49 High-Speed Fuse 55A 690V Ceramic
- MPN: F220966
- PPN: FER-F220966
CAD
$116.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Extremely high breaking capacity fuses: Protection of power semiconductors as per IEC standard 60269-1 and -4 690V voltage rating as per IEC 33 gR class (current ratings 12 to 90A) as per VDE 636-23 - Clearing all overloads - Improved safety and protection - Enabling selective coordination with all fuses within distribution circuit aR class (current ratings 100A) according to VDE 636-23 and IEC 60269-4 Connection as per: - German standard DIN 43653/00C - British standard BS88-4 These fuses are UL Recognized
Specifications
Key Specifications
| Rated voltage AC UL | 700 V |
|---|---|
| Rated voltage AC IEC | 690 V |
| ROHS Compliant | Yes |
| Fuse Size | 17x49 |
| Clearing I2t At Rated Voltage | 1320 A²s |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Copper |
| Body/Insulating Material | Ceramic |
| Length | 3.04 in |
| Rated voltage DC UL | 600 V |
|---|---|
| Ampere Rating | 55 A |
| AC or DC | AC |
| Mounting | Bolted |
| Melting I2t | 210 A²s |
| Design Details | gRB |
| Connection/Terminal Type | L Brackets |
| Power Dissipation at Rated Current Value | 13.5 W |
| Weight | 0.086 lb |
