Mersen

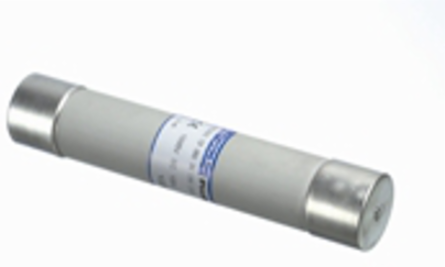

Mersen P221135 Protistor 36x250 gR Semiconductor Fuse - 2000VDC, 0.8A, 30kA, Ceramic

Protistor 36x250 gR Semiconductor Fuse - 2000VDC, 0.8A, 30kA, Ceramic
  • MPN: P221135
  • PPN: FER-P221135

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1096.68/ EA

Description

Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.

Specifications

Specifications

Rated voltage DC IEC
2000 V
AC or DC
DC
Fuse Size
36x250
Max. Rated Breaking Capacity DC
30 kA
Connection/Terminal Material
Silver-Plated Copper
Body/Insulating Material
Ceramic
Length
9.84 in
Ampere Rating0.8 A
Speed/CharacteristicgR
MountingClip
Design DetailsgRB
Connection/Terminal TypeFerrule
Power Dissipation at Rated Current Value1.8 W
Weight1.345 lb
