Weidmuller 2540790000 SLDF 5.08/16/180F L/F SN OR BX

MPN: 2540790000
PPN: WDM-2540790000

$10.71

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

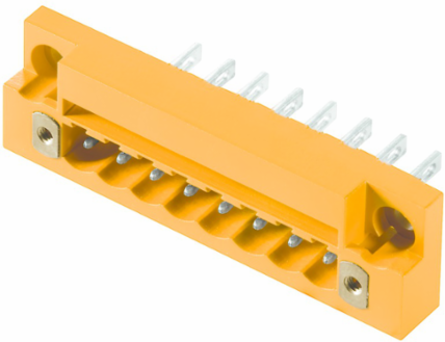

PCB plug-in connector, male header, 5.08 mm, Number of poles: 16, 180°, Flat-blade connection, Solder connection, Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Rated voltage (Use group B / UL 1059)	300 V
Rated current (Use group B / UL 1059)	10 A

Rated voltage (Use group D / UL 1059)	300 V
Rated current (Use group D / UL 1059)	10 A

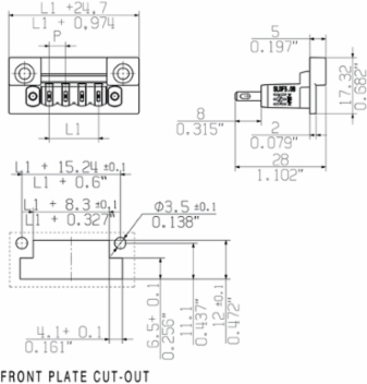

Dimensions And Weights

Width	100.9 mm
Height	17.32 mm
Depth	28 mm
Net weight	15.732 g

Width (inches)	3.972 inch
Height (inches)	0.682 inch
Depth (inches)	1.102 inch

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984
Rated current, min. number of poles (Tu=40°C)	13 A
Rated voltage for surge voltage class / pollution degree III/2	320 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	4 kV

Rated current, min. number of poles (Tu=20°C)	15 A
Rated voltage for surge voltage class / pollution degree II/2	400 V
Rated voltage for surge voltage class / pollution degree III/3	250 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	4 kV

Material Data

Insulating material	PBT
Colour chart (similar)	RAL 2000
Comparative Tracking Index (CTI)	≥ 200
UL 94 flammability rating	V-0
Contact material	CuSn
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	100 °C
Temperature range, installation, max.	100 °C

Colour	orange
Insulating material group	IIIa
Insulation strength	≥ 108 Ω
GWFI	960 °C
Layer structure of plug contact	4-8 µm Sn hot-dip tinned
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Classifications

ETIM 6.0	EC002637
eClass 9.0	27-44-04-02
eClass 10.0	27-44-04-02

ETIM 7.0	EC002637
eClass 9.1	27-44-04-02

Packing

Packaging	Box
VPE width	0 m

VPE length	0 m
VPE height	0 m

System Specifications

Product family	OMNIMATE Signal - series BL/SL 5.08
Pitch in mm (P)	5.08 mm
Number of poles	16
L1 in inches	3 inch
Can be coded	Yes
Plugging force/pole, max.	6.5 N

Type of connection	Field connection
Pitch in inches (P)	0.2 inch
L1 in mm	76.2 mm
Pin series quantity	1
Plugging cycles	25
Pulling force/pole, max.	5 N

Notes

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
