Weidmuller 1599140000 SLDF 5.08 L/F 3 SN OR BX

MPN: 1599140000
PPN: WDM-1599140000

$1.92

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

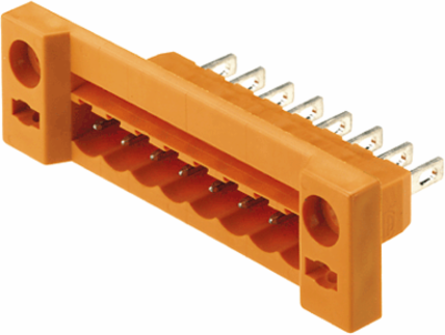

PCB plug-in connector, male header, 5.08 mm, Number of poles: 3, 180°, Flat-blade connection, Solder connection, Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (UR)	UR
Rated voltage (Use group B / UL 1059)	300 V
Rated current (Use group B / UL 1059)	10 A
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (UR)	E60693
Rated voltage (Use group D / UL 1059)	300 V
Rated current (Use group D / UL 1059)	10 A

Approvals

Approvals	CSA, EAC, UR
UL File Number Search	E60693

ROHS	Conform

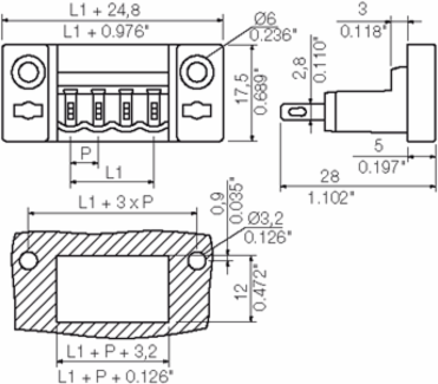

Dimensions And Weights

Width	34.96 mm
Height	17.5 mm
Depth	28 mm
Net weight	4.42 g

Width (inches)	1.376 inch
Height (inches)	0.689 inch
Depth (inches)	1.102 inch

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984
Rated current, min. number of poles (Tu=40°C)	13 A
Rated voltage for surge voltage class / pollution degree III/2	320 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	4 kV

Rated current, min. number of poles (Tu=20°C)	15 A
Rated voltage for surge voltage class / pollution degree II/2	400 V
Rated voltage for surge voltage class / pollution degree III/3	250 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	4 kV

Material Data

Insulating material	PBT
Colour chart (similar)	RAL 2000
Comparative Tracking Index (CTI)	≥ 200
UL 94 flammability rating	V-0
Contact material	CuSn
Layer structure of plug contact	4-8 µm Sn hot-dip tinned
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Colour	orange
Insulating material group	IIIa
Insulation strength	≥ 108 Ω
GWFI	960 °C
Contact surface	tinned
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	100 °C
Temperature range, installation, max.	100 °C

Classifications

ETIM 6.0	EC002637
eClass 9.0	27-44-04-02
eClass 10.0	27-44-04-02

ETIM 7.0	EC002637
eClass 9.1	27-44-04-02
UNSPSC	30-21-18-10

Packing

Packaging	Box
VPE width	124 mm

VPE length	70 mm
VPE height	197 mm

System Specifications

Product family	OMNIMATE Signal - series BL/SL 5.08
Pitch in mm (P)	5.08 mm
Number of poles	3
L1 in inches	0.4 inch
Pin series quantity	1
Plugging cycles	25
Pulling force/pole, max.	5 N

Type of connection	Field connection
Pitch in inches (P)	0.2 inch
L1 in mm	10.16 mm
Number of rows	1
Can be coded	Yes
Plugging force/pole, max.	6.5 N

Notes

Additional colours on request Rated current related to rated cross-section & min. No. of poles. Connectable cables with solder connection solid and flexible up to 2.5 mm² with insulating/shrink-wrap sleeve or from 2.8 mm flat blade receptacles with insulated sleeves acc. to DIN IEC 760 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Conductors Suitable For Connection

Reference text	The outside diameter of the plastic collar should not be larger than the pitch (P).

Rated Data Acc. To Csa

Institute (CSA)	CSA
Rated voltage (Use group B / CSA)	300 V
Rated current (Use group B / CSA)	10 A
Reference to approval values	Specifications are maximum values, details - see approval certificate.
