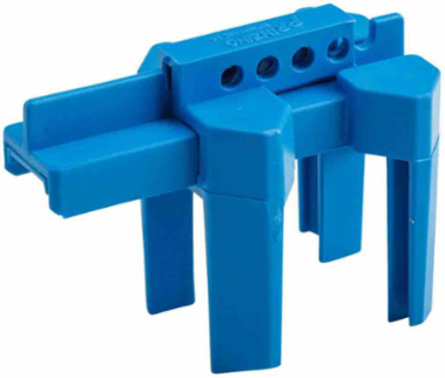

Brady BS07A-BU Small Ball Valve Lockout Device, Blue Pipe Diameter Range: 1/2 to 2-1/2 in
- MPN: BS07A-BU
- UPC: 754473453428
- PPN: BRD-BS07A-BU
- UNSPSC: 39121909
CAD
$36.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Patented design and ultra-tough polypropylene material make these devices the best choice to assuredly lock out your ball valves.
Features
- Small Ball Valve Lockout Device locks out pipes 1/2" to 2-1/2" in diameter and can lock values OPEN on pipes from 1/2" to 1-1/4" in diameter
- Ultra-tough polypropylene resists temperatures from 0° to 175°F (-18° to 79°C)
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
- Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices
Documentation & Downloads
Specifications
Key Specifications
- Ball Valve Lockout Type
- Fits over Valve
- Color
- Blue
- Enables Industry Compliance
- OSHA 1910.147
- Open or Closed Valve
- Both
- Risk Type
- Mechanical Risk
- Brady Material Number
- LOTO-22
- SAP B-Number
- LOTO-22
- Depth (mm/cm/m)
- 134.87 mm
- Dimensions (Metric)
- 103.4 mm H x 134.87 mm D
- Height (mm/cm/m)
- 103.4 mm
- Maximum Handle Thickness (mm/cm/m)
- 12.7 mm
- Maximum Handle Width (mm/cm/m)
- 25.4 mm
- Maximum Pipe Diameter (mm/cm/m)
- 63.5 mm
- Maximum Service Temperature °F
- 302 °F
- Maximum Shackle Diameter (mm/cm/m)
- 7.95 mm
- Minimum Pipe Diameter (in/ft/yd)
- 0.5 in
- Minimum Service Temperature °C
- -40 °C
- Minimum Shackle Clearance (in/ft/yd)
- 0.75 in
- Minimum Valve Size (in/ft/yd)
- .5 in
- Pipe Diameter Range (mm/cm/m)
- 12.7 mm to 63.5 mm
- Service Temperature Range °F
- -40 °F to 302 °F
- Valve Size Range
- 0.5 to 2.5 in
- Width (mm/cm/m)
- 77.47 mm
Brand NameBrady®
ConductivityConductive
Maximum Number of Padlocks2
Primary Noun, Basic FunctionLockout Device
Trade NameBrady®
Lockout MaterialPolypropylene
Depth (in/ft/yd)5.31 in
Dimensions4.07 in H x 3.05 in W x 5.31 in D
Height (in/ft/yd)4.07 in
Maximum Handle Thickness (in/ft/yd)0.5 in
Maximum Handle Width (in/ft/yd)1 in
Maximum Pipe Diameter (in/ft/yd)2.5 in
Maximum Service Temperature °C150 °C
Maximum Shackle Diameter (in/ft/yd)0.313 in
Maximum Valve Size2.5 in
Minimum Pipe Diameter (mm/cm/m)12.7 mm
Minimum Service Temperature °F-40 °F
Minimum Shackle Clearance - (mm/cm/m)19.05 mm
Pipe Diameter Range (in/ft/yd)1/2 to 2-1/2 in
Service Temperature Range °C-40 °C to 150 °C
Sign Size-General4.07 in x 3.05 in
Width (in/ft/yd)3.05 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- Contains 3TG Mineral
- Not Applicable
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
