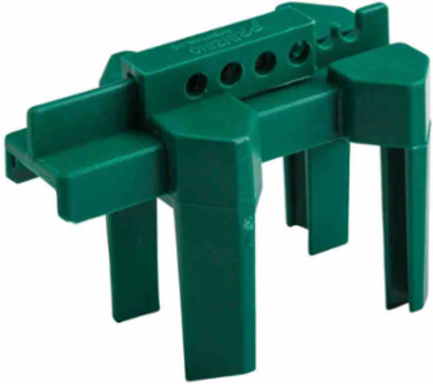

Brady BS07A-GN Small Ball Valve Lockout Device, Green Pipe Diameter Range: 1/2 to 2-1/2 in
- MPN: BS07A-GN
- UPC: 754473453435
- PPN: BRD-BS07A-GN
- UNSPSC: 39121909
CAD
$36.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Patented design and ultra-tough polypropylene material make these devices the best choice to assuredly lock out your ball valves.
Features

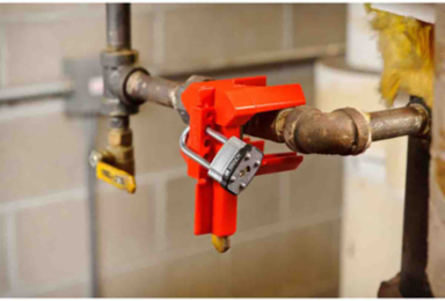

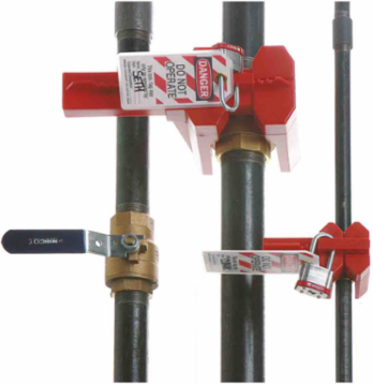

- Small Ball Valve Lockout Device locks out pipes 1/2" to 2-1/2" in diameter and can lock values OPEN on pipes from 1/2" to 1-1/4" in diameter
- Ultra-tough polypropylene resists temperatures from 0° to 175°F (-18° to 79°C)
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
- Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices
Documentation & Downloads
Specifications
Key Specifications
- Ball Valve Lockout Type
- Fits over Valve
- Color
- Green
- Enables Industry Compliance
- OSHA 1910.147
- Open or Closed Valve
- Both
- Risk Type
- Mechanical Risk
- Lockout Material
- Polypropylene
- Depth (in/ft/yd)
- 5.31 in
- Dimensions
- 4.07 in H x 3.05 in W x 5.31 in D
- Height (in/ft/yd)
- 4.07 in
- Maximum Handle Thickness (in/ft/yd)
- 0.5 in
- Maximum Handle Width (in/ft/yd)
- 1 in
- Maximum Pipe Diameter (in/ft/yd)
- 2.5 in
- Maximum Service Temperature °C
- 150 °C
- Maximum Shackle Diameter (in/ft/yd)
- 0.313 in
- Maximum Valve Size
- 2.5 in
- Minimum Pipe Diameter (mm/cm/m)
- 12.7 mm
- Minimum Service Temperature °F
- -40 °F
- Minimum Shackle Clearance - (mm/cm/m)
- 19.05 mm
- Pipe Diameter Range (in/ft/yd)
- 1/2 to 2-1/2 in
- Service Temperature Range °C
- -40 °C to 150 °C
- Sign Size-General
- 4.07 in x 3.05 in
- Width (in/ft/yd)
- 3.05 in
Brand NameBrady®
ConductivityConductive
Maximum Number of Padlocks2
Primary Noun, Basic FunctionLockout Device
Brady Material NumberLOTO-22
SAP B-NumberLOTO-22
Depth (mm/cm/m)134.87 mm
Dimensions (Metric)103.4 mm H x 134.87 mm D
Height (mm/cm/m)103.4 mm
Maximum Handle Thickness (mm/cm/m)12.7 mm
Maximum Handle Width (mm/cm/m)25.4 mm
Maximum Pipe Diameter (mm/cm/m)63.5 mm
Maximum Service Temperature °F302 °F
Maximum Shackle Diameter (mm/cm/m)7.95 mm
Minimum Pipe Diameter (in/ft/yd)0.5 in
Minimum Service Temperature °C-40 °C
Minimum Shackle Clearance (in/ft/yd)0.75 in
Minimum Valve Size (in/ft/yd).5 in
Pipe Diameter Range (mm/cm/m)12.7 mm to 63.5 mm
Service Temperature Range °F-40 °F to 302 °F
Valve Size Range0.5 to 2.5 in
Width (mm/cm/m)77.47 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- Contains 3TG Mineral
- Not Applicable
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
