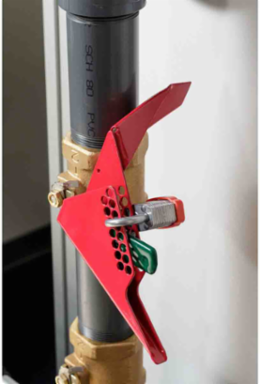

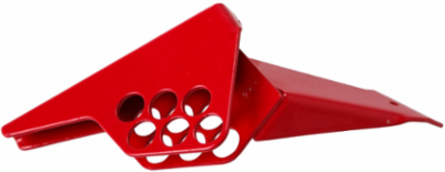

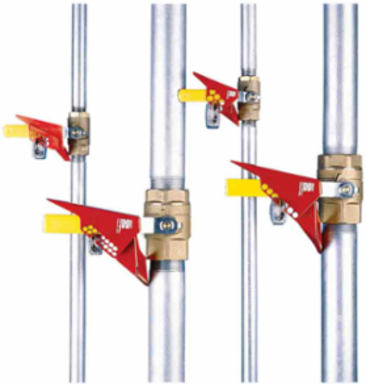

Brady 65692 Small Steel Ball Valve Lockout Device Pipe Diameter Range: 1/4 to 1 in
- MPN: 65692
- UPC: 754473656928
- PPN: BRD-65692
- UNSPSC: 39121909
CAD
$40.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The easy-to-use, single piece design of Ball Valve Lockouts from Brady® makes them the perfect tool for securing your valve handles in the off position.
Features
- Locks out ball valve sizes from 1.25 in. to 3 in. (fits standard 9/32 in. lock shackle diameters)
- Made of powder-coated steel for superior rust resistance
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
- Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices
Documentation & Downloads
Specifications
Key Specifications
- Ball Valve Lockout Type
- Fits over Handle
- Color
- Red
- Maximum Number of Padlocks
- 1
- Number of Holes
- 6
- Primary Noun, Basic Function
- Lockout Device
- Total Qty per Pack
- 1 Piece(s) / Pack
- Brady Material Number
- LOTO-23
- Lockout Material
- Steel
- SAP B-Number
- LOTO-23
- Depth (mm/cm/m)
- 121.92 mm
- Dimensions (Metric)
- 50.80 mm W x 63.50 mm H x 121.92 mm D
- Height (mm/cm/m)
- 63.50 mm
- Maximum Handle Thickness (in/ft/yd)
- .31 in
- Maximum Handle Width (in/ft/yd)
- 1.5 in
- Maximum Outside Pipe Diameter (mm/cm/m)
- 6.35 - 25.40
- Maximum Pipe Diameter (mm/cm/m)
- 25.4 mm
- Maximum Service Temperature °F
- 200 °F
- Maximum Shackle Diameter (mm/cm/m)
- 9.53 mm
- Minimum Pipe Diameter (in/ft/yd)
- 0.5 in
- Minimum Service Temperature °C
- -30 °C
- Minimum Shackle Clearance (in/ft/yd)
- 0.75 in
- Minimum Valve Size (in/ft/yd)
- 0.25 in
- Pipe Diameter Range (mm/cm/m)
- 6.35 mm to 25.4 mm
- Service Temperature Range °F
- -20 °F to 200 °F
- Size - W x H x D (mm)
- 50.80 x 63.50 x 121.92
- Size of Valve Lever (mm)
- 6 - 25
- Width (in/ft/yd)
- 2 in
Brand NameBrady®
Enables Industry ComplianceOSHA 1910.147
National Stock Number (NSN)4820015720000
Open or Closed ValveClosed
Risk TypeMechanical Risk
Adhesive (Y/N)No
Coating MaterialPowder Coated
MaterialSteel
Depth (in/ft/yd)4.8 in
Dimensions2.5 in H x 2 in W x 4.8 in D
Height (in/ft/yd)2.5 in
Hole Inside Diameter (mm/cm/m)8.00 mm
Maximum Handle Thickness (mm/cm/m)19.05 mm
Maximum Handle Width (mm/cm/m)38.1 mm
Maximum Pipe Diameter (in/ft/yd)1 in
Maximum Service Temperature °C93 °C
Maximum Shackle Diameter (in/ft/yd)0.375 in
Maximum Valve Size1 in
Minimum Pipe Diameter (mm/cm/m)12.7 mm
Minimum Service Temperature °F-20 °F
Minimum Shackle Clearance - (mm/cm/m)19.05 mm
Pipe Diameter Range (in/ft/yd)1/4 to 1 in
Service Temperature Range °C-30 °C to 93 °C
Sign Size-General2.5 in x 2 in
Size - Width (mm)50.80 mm
Valve Size Range0.25 to 1 in
Width (mm/cm/m)50.8 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
