Tripp Lite SRW10US 10U Low-Profile Wall-Mount Rack Enclosure, 200 lb Capacity, 20.5 Inch Deep
- MPN: SRW10US
- UPC: 037332154828
- PPN: TRP-SRW10US
CAD
$948.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

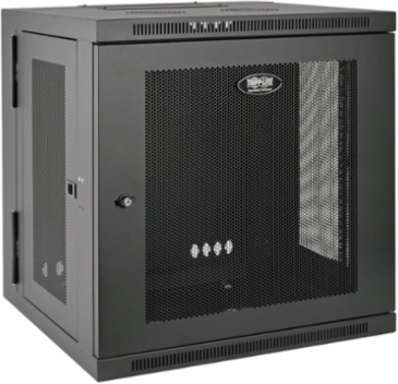

Wall-mount cabinet secures and organizes 10U of 19-inch rack equipment in network closets, classrooms and other locations with limited floor space. Houses network switches and patch panels up to 20.5 inches deep.
Features
- Maximum load capacity of 200 lb.

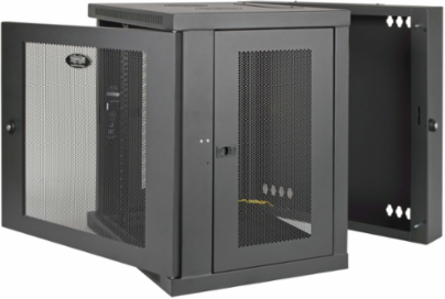

- Swings away from wall on hinge for easy back-door access
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 10U of 19 in. rack equipment up to 20.5 in. deep
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Weight Capacity - Stationary
- 200 lb
- Minimum Device Depth
- 3 in.
- Rack Height
- 10U
- Rack Type
- Enclosure
- Shipping Dimensions (H x W x D)
- 24.25 x 26.38 x 24.13 in.
- Shipping Weight
- 59 lb
- Grounding Lug
- Front and Back door frames
- Material
- Steel
- Mounting Type
- Wall-Mount
- Door Type
- Reversible (180° rotation)
- Mounting Rails Adjustment
- 7/8 in increments

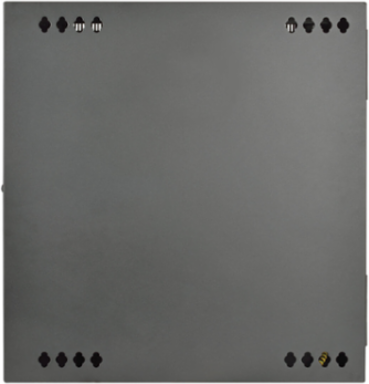

- Wall-Mounting Hole Spacing
- 16 in apart
- Approvals
- UL/CSA 60950-1, EIA-310-E, IEC 60297-3-100, RoHS, IP20
- Warranty
- 5-year limited warranty
Maximum Device Depth20.5 in.
Factory Preset Rack Depth10.42 in.
Rack DepthShallow
Unit Dimensions (H x W x D)21.57 x 23.62 x 21.6 in.
Unit Weight55 lb
Cable Access Hole Size9.812 x 2.35 in.
ColorBlack
FinishBlack Powder-Coated
HingeSwings away from wall
VentilationFlow-through vented panels (front, top, bottom, sides)

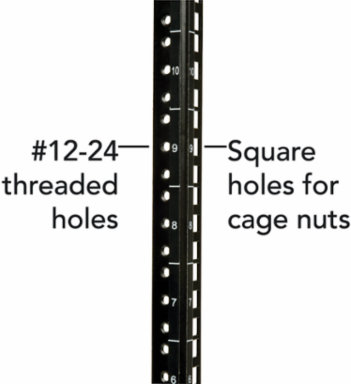

Mounting Rails CompatibilitySquare-hole or 12-24 threaded-hole
SecurityLocking side panels and doors
Protection RatingIP20
