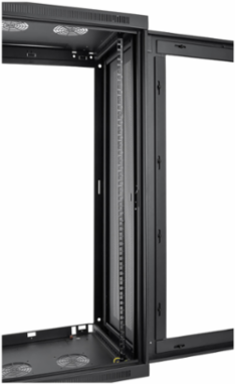

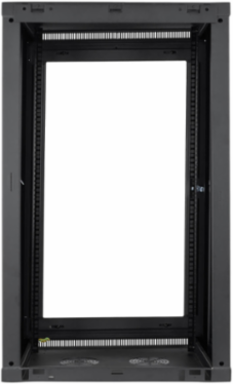

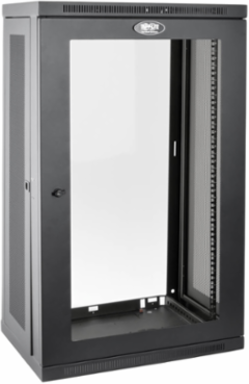

Tripp Lite SRW21UG 21U Low-Profile Wall-Mount Rack Enclosure Cabinet, 16.5 Inch Depth, 200 lb Capacity
- MPN: SRW21UG
- UPC: 037332187338
- PPN: TRP-SRW21UG
CAD
$1553.43
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wall-mount cabinet secures and organizes 21U of 19-inch rack equipment in network closets, classrooms and other locations with limited floor space. Clear acrylic window allows you to monitor equipment without unlocking door.
Features
- Maximum load capacity of 200 lb.

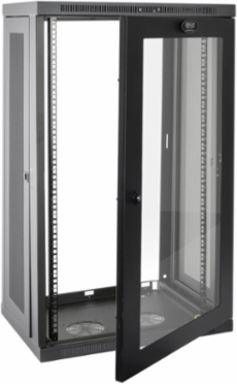

- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Secures 21U of 19 in. rack equipment up to 16.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
| Rack Height | 21U |
|---|---|
| Minimum Device Depth | 3 in. |
| Unit Dimensions (HxWxD) | 40.87 x 23.63 x 17.72 in. |
| Weight | 51.2 lb. |
| Rack Type | Enclosure |
| Material | Steel |
| Color | Black |
| Locking | Front door and side panels |
| Door Type | Reversible front door (left or right opening with 180° rotation before mounting) |
| Mounting Hole Spacing | 16 in. apart |
| Mounting Rail Hole Type | Square-hole or 12-24 threaded-hole |
| Grounding Lug Location | Front and back door frames |
| Compliance | UL/CSA 60950-1, EIA-310-E, RoHS |
| UPC Code | 037332187338 |
| Maximum Device Depth | 16.5 in. |
|---|---|
| Maximum Load Capacity | 200 lb. |
| Shipping Dimensions (HxWxD) | 46.10 x 18.70 x 24.50 in. |
| Shipping Weight | 68 lb. |
| Rack Depth | Shallow |
| Finish | Black powder-coated |
| Door Window Material | Clear acrylic |
| Ventilation | Vented top, bottom, and removable side panels |
| Mounting | Wall-mount with optional caster kit for rolling |
| Mounting Rail Adjustment | 7/8 in. increments |
| Cable Access Hole Size | 9.812 x 2.35 in. |
| Protection Rating | IP20 |
| Product Warranty Period | 5-year limited warranty |
