Tripp Lite SRWX12USNEMA SmartRack 12U IP54 Wall-Mount Rack Enclosure, 20.5 Inch Depth, 230V
Tripp Lite SRWX12USNEMA SmartRack 12U IP54 Wall-Mount Rack Enclosure, 20.5 Inch Depth, 230V
- MPN: SRWX12USNEMA
- UPC: 037332209320
- PPN: TRP-SRWX12USNEMA
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1958.07/ EA
Description

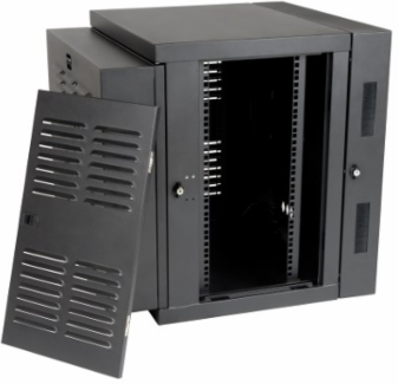

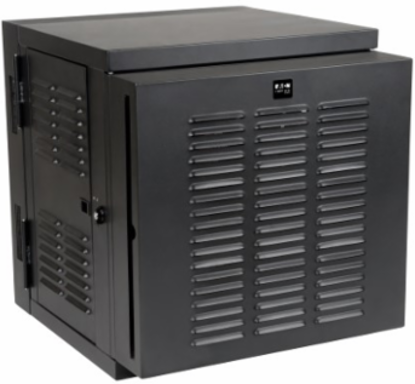

Wall-mount cabinet secures and organizes 12U of 19 in. (48.3 cm) rack equipment up to 20.5 in. (52.1 cm) deep in harsh, dirty work environments with limited floor space, such as factories, construction areas and warehouses.
Features
- Maximum load capacity of 200 lb. (90.7 kg)
- IP54 (NEMA 12) rating against dirt, dust, drips and splashes

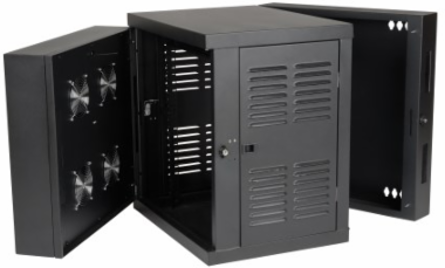

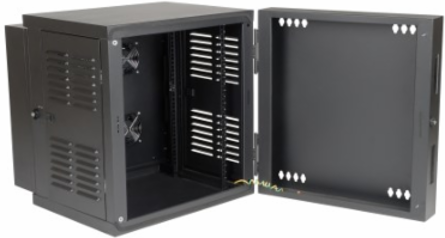

- Swings away from wall on hinge for easy back-door access

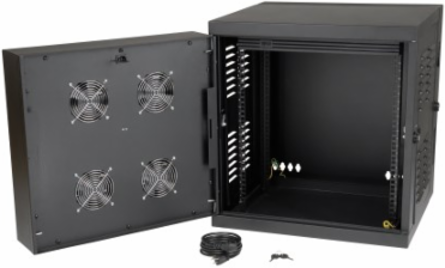

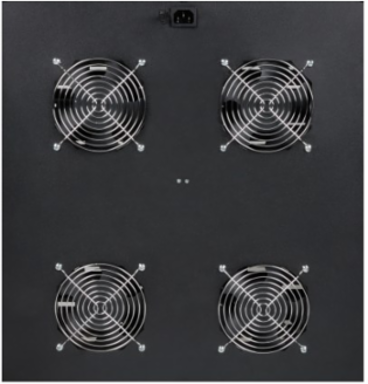

- Locking steel cabinet with built-in ventilation fans
- Secures 12U of 19 in. rack equipment up to 20.5 in. (52.1 cm) deep
- 2-year limited warranty
Specifications
Certifications
- Approvals
- UL 60950; EIA-310-E, IEC 60297-3-100, IP54 Protection Rating, RoHS
Physical
- Color
- Black
- Maximum Device Depth (in.)
- 20.5
- Rack Height
- 12U
- Shipping Weight (lbs.)
- 93.00
- Unit Weight (lbs.)
- 81.2
- Rack Depth
- Shallow
Factory Preset Rack Depth (in.)10.42
Minimum Device Depth (in.)3
Shipping Dimensions (hwd / in.)28.00 x 26.00 x 29.00
Unit Dimensions (hwd / in.)25.08 x 23.62 x 26.42
Weight Capacity - Stationary (lbs.)200
Input
- Nominal Input Voltage(s) Supported
- 230V AC
- Input Plug Type
- Schuko; BS1363; C14
Nominal Input Voltage Description230V 50/60 Hz
Input Cord Length (ft.)6
Overview
- UPC Code
- 037332209320
Rack TypeEnclosure
Special Features
- Grounding Lug
- Front and Back door frames
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
