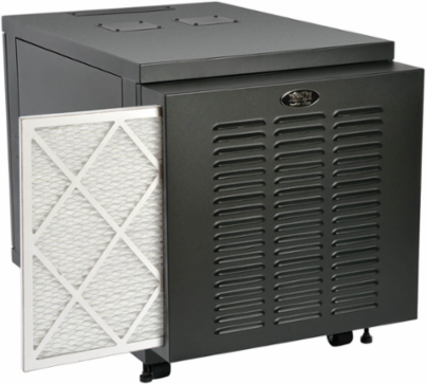

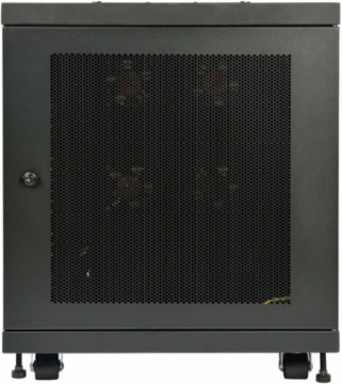

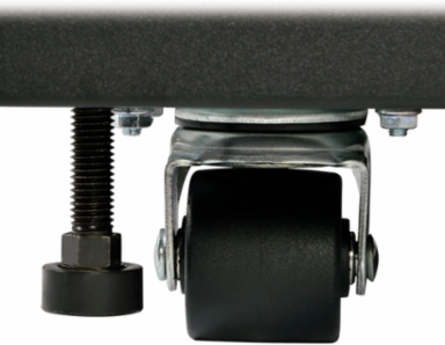

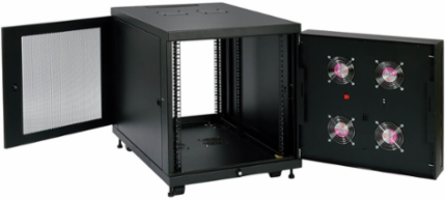

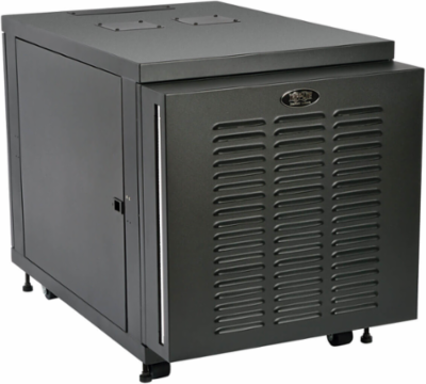

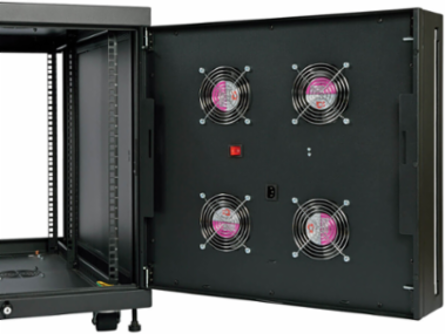

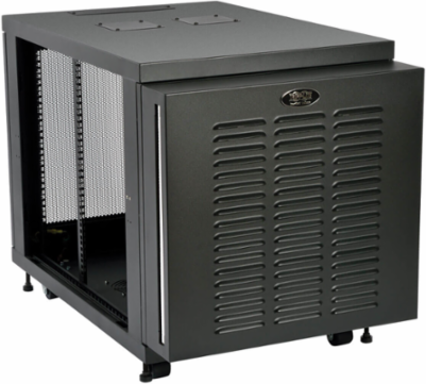

Tripp Lite SRX12UBFFD SmartRack 12U Rack Enclosure Cabinet, IP54 Rating, 32.5 Inch Depth, 1000 lb Capacity
- MPN: SRX12UBFFD
- UPC: 037332204073
- PPN: TRP-SRX12UBFFD
CAD
$2282.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Secures and organizes 12U of 19 in. (48.3 cm) rack equipment up to 32.5 in. (82.6 cm) deep in harsh, dirty work environments with limited floor space, such as factories, construction areas, utility plants and warehouses.
Features
- Maximum load capacity of 1000 lb. (453.4 kg)
- IP54 (NEMA 12) rating against dirt, dust, drips and splashes
- Pre-installed dust filter protects interior from airborne particles
- Locking steel cabinet with built-in ventilation fans
- Secures 12U of 19 in. rack equipment up to 32.5 in. (82.6 cm) deep
- 2-year limited warranty
Documentation & Downloads
Specifications
Certifications
- Approvals
- EIA-310-E, IEC 60297-3-100, IP54 Protection Rating, RoHS
Physical
- Color
- Black
- Maximum Device Depth (in.)
- 32.5
- Rack Height
- 12U
- Shipping Weight (lbs.)
- 136.00
- Unit Weight (lbs.)
- 96
- Weight Capacity - Stationary (lbs.)
- 1000
Factory Preset Rack Depth (in.)10.42
Minimum Device Depth (in.)3
Shipping Dimensions (hwd / in.)30.90 x 25.00 x 39.80
Unit Dimensions (hwd / in.)25.2 x 23.6 x 38.5
Weight Capacity - Rolling (lbs.)1000
Rack DepthMid
Input
- Nominal Input Voltage(s) Supported
- 230V AC
- Input Plug Type
- Schuko; BS1363; C14
Nominal Input Voltage Description230V 50/60 Hz
Input Cord Length (ft.)6
Overview
- UPC Code
- 037332204073
Rack TypeEnclosure
Special Features
- Grounding Lug
- Front and back door frames
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
