Tripp Lite SRW12US33G 12U Wall-Mount Server Rack Enclosure Cabinet, 32.5 Inch Depth, Black
- MPN: SRW12US33G
- UPC: 037332187352
- PPN: TRP-SRW12US33G
CAD
$1654.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

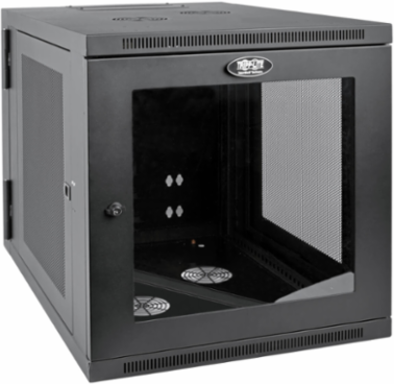

Wall-mount cabinet secures and organizes 12U of 19-inch rack equipment in network closets, classrooms and other locations with limited floor space. Extra deep to accommodate 1U servers, UPS systems, battery packs and switches.
Features
- Maximum load capacity of 250 lb.

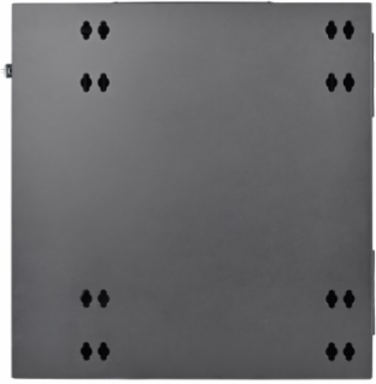

- Swings away from wall bracket on a hinge for easy access
- Locking steel cabinet vented at sides, top and bottom
- Secures 12U of 19 in. rack equipment up to 32.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Rack Height
- 12U
- Maximum Load Capacity
- 250 lb.
- Unit Weight
- 94.5 lb.
- Shipping Weight
- 118 lb.
- Factory Preset Rack Depth
- 25.99 in.
- Rack Type
- Enclosure
- Color
- Black
- Finish
- Black powder-coated
- Mounting Holes Spacing
- 16 in.
- Vertical Mounting Rail Adjustment Increment
- 7/8 in.
- Window Material
- Shatter-resistant clear acrylic
- Security Features

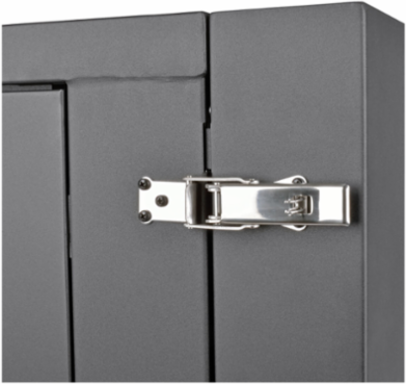

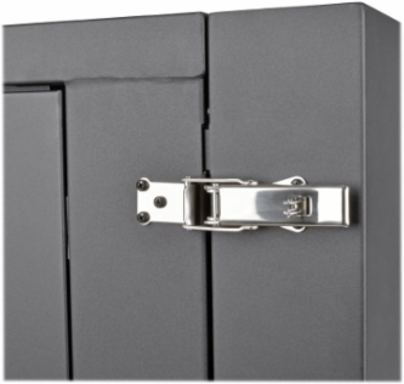

- Locking doors and side panels
- Product Warranty Period
- 5-year limited
Maximum Device Depth32.5 in.
Unit Dimensions (H x W x D)25 x 23.63 x 33.5 in.
Shipping Dimensions (H x W x D)30.20 x 26.10 x 36.06 in.
Rack DepthMid
Grounding LugFront and back door frames
ApprovalsEIA-310-D, IEC 60297-3-100, IP20, RoHS
MaterialHeavy-duty steel

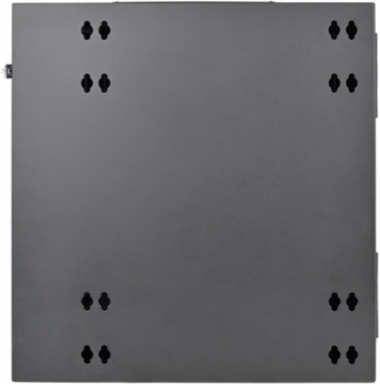

Mount TypeWall-mount
Cable Access Hole Measurement9.812 x 2.35 in. (L x W)

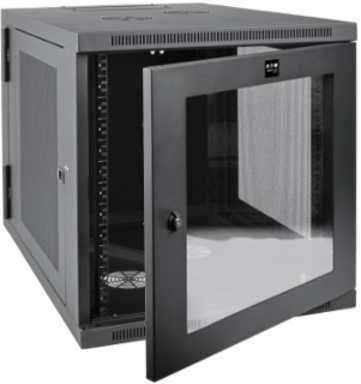

Door TypeReversible hinged front door
VentilationVented panels at top, bottom, and sides

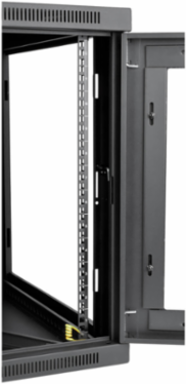

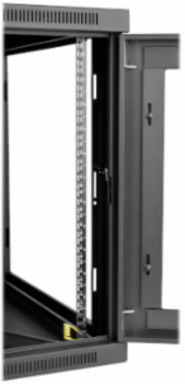

Mounting Rail SupportSquare-hole or 12-24 threaded-hole
