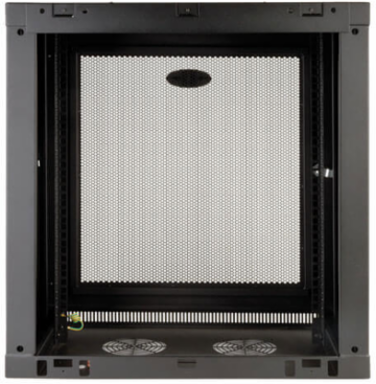

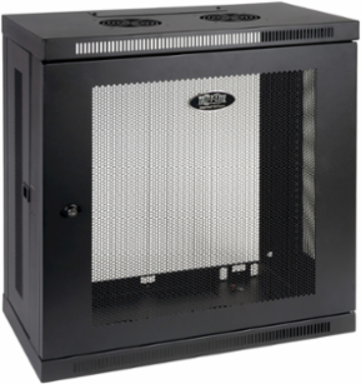

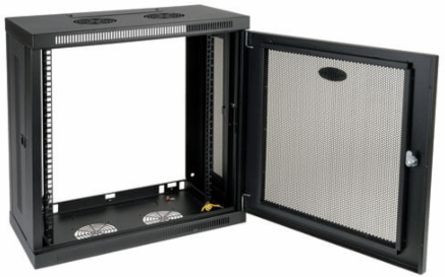

Tripp Lite SRW12U13 12U Low-Profile Wall-Mount Rack Enclosure Cabinet, 200 lb Capacity, Shallow Depth
- MPN: SRW12U13
- UPC: 037332177957
- PPN: TRP-SRW12U13
CAD
$729.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wall-mount cabinet secures and organizes 12U of 19-inch rack equipment in network closets, classrooms and other locations with limited floor space. Houses patch panels and shallow network switches up to 12.75 inches deep.
Features
- Maximum load capacity of 200 lb.
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 12U of 19 in. rack equipment up to 12.75 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
| Rack Height | 12U |
|---|---|
| Maximum Device Depth | 12.75 in |
| Unit Dimensions (HxWxD) | 25.08 x 23.62 x 13 in |
| Unit Weight | 38 lb |
| Material | Heavy-duty steel with powder-coated finish |
| Protection Rating | IP20 |
| Color | Black |
| Weight Capacity - Stationary | 200 lb |
|---|---|
| Rack Depth | Shallow |
| Shipping Dimensions | 15.75 x 25.60 x 27.56 in |
| Cable Access Hole Size | 9.812 x 2.35 in (L x W) |
| Certifications | UL/CSA 60950-1, EIA-310-E, RoHS |
| Grounding Lug | Front door frame |
