Tripp Lite SRW15USG 15U Low-Profile Wall-Mount Rack Enclosure Cabinet, 20.5 Inch Max Depth
- MPN: SRW15USG
- UPC: 037332187369
- PPN: TRP-SRW15USG
CAD
$1372.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

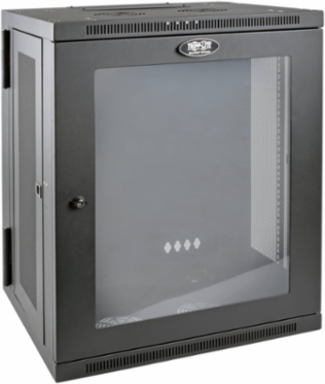

Wall-mount cabinet secures and organizes 15U of 19-inch rack equipment in network closets, classrooms and other locations with limited floor space. Clear acrylic window allows you to monitor equipment without unlocking door.
Features
- Maximum load capacity of 200 lb.
- Swings away from wall bracket on a hinge for easy access

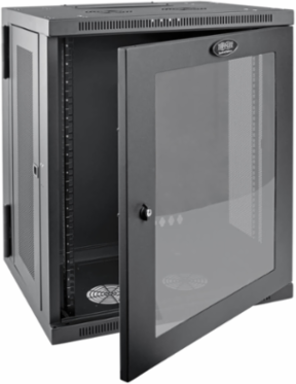

- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Secures 15U of 19 in. rack equipment up to 20.5 in. deep
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
| Load Capacity | 200 lb. |
|---|---|
| Rack Depth | Shallow |
| Minimum Device Depth | 3 in. |
| Unit Dimensions (H x W x D) | 30.33 x 23.62 x 21.6 in. |
| Unit Weight | 88.2 lb. |
| Material | Steel |
| Color | Black |
| Door Type | Hinged, reversible (opens left or right) |
| Ventilation | Vented panels at top, bottom, and sides |

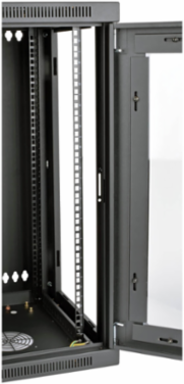

| Vertical Rail Adjustment Increment | 7/8 in. |
| Security Features | Locking doors and side panels |
| Grounding Lug | Front and Back door frames |
| UPC Code | 037332187369 |
| Product Warranty Period | 5-year limited warranty |
| Rack Height | 15U |
|---|---|
| Maximum Device Depth | 20.5 in. |
| Factory Preset Rack Depth | 10.42 in. |
| Shipping Dimensions (H x W x D) | 24.10 x 33.07 x 26.38 in. |
| Shipping Weight | 75 lb. |
| Finish | Black powder-coated |
| Mounting Type | Wall-mount |
| Front Door Window Material | Shatter-resistant clear acrylic |
| Mounting Hole Spacing | 16 in. |
| Rail Mounting Hole Types | Square-hole, 12-24 threaded-hole |
| Cable Management | Removable cover ports at top and bottom |
| Compliance | UL/CSA 60950-1, EIA-310-D, IEC 60297-3-100, IP20 Protection, RoHS, PCI DSS |
| Rack Type | Enclosure |
