Tripp Lite SRW18US 18U Low-Profile Wall-Mount Rack Enclosure Cabinet, 20.5 Inch Depth, 250 lbs Capacity
- MPN: SRW18US
- UPC: 037332154835
- PPN: TRP-SRW18US
CAD
$1521.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Wall-mount cabinet secures and organizes 18U of 19-inch rack equipment in network closets, classrooms and other locations with limited floor space. Houses network switches and patch panels up to 20.5 inches deep.
Features
- Maximum load capacity of 250 lb.

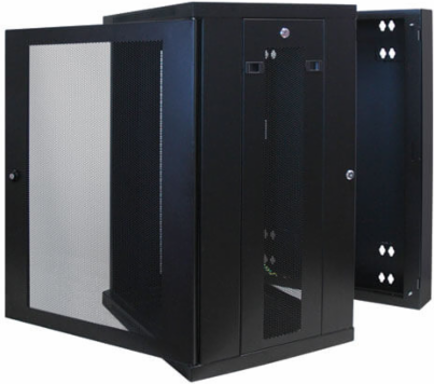

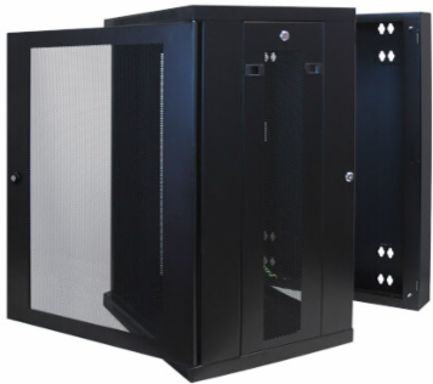

- Swings away from wall on hinge for easy back-door access
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 18U of 19 in. rack equipment up to 20.5 in. deep
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Maximum Load Capacity
- 250 lb
- Rack Height
- 18U
- Rack Depth
- Shallow
- Rack Width
- 19 in
- Unit Weight
- 96 lbs
- Material
- Steel
- Door Style
- Hinged, reversible
- Mounting Hole Spacing
- 16 in
- Mounting Rail Adjustment
- 7/8 in increments
- Approvals
- UL/CSA 60950-1, EIA-310-D, IEC 60297-3-100, RoHS
- Color
- Black
Maximum Device Depth20.5 in
Rack TypeEnclosure
Unit Dimensions (H x W x D)35.6 x 23.6 x 21.6 in
Cable Access Hole Dimension9.812 x 2.35 in (L x W)
Mounting TypeWall-mount
FinishBlack powder-coated
VentilationFront, top, bottom, and sides vented

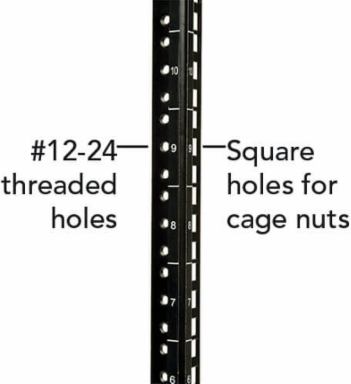

Mounting Hole TypeSquare-hole and 12-24 threaded-hole
Protection RatingIP20
Grounding LugFront and back door frames
Warranty5-year limited warranty
