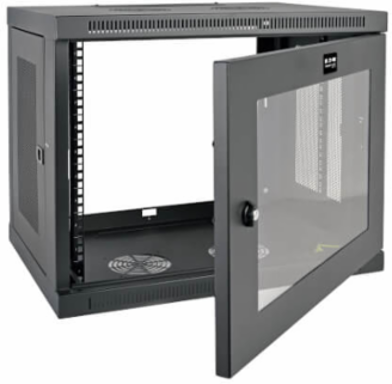

Tripp Lite SRW9UG SmartRack 9U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet with Clear Acrylic Window

MPN: SRW9UG
UPC: 037332187291
PPN: TRP-SRW9UG

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$648.80/ EA

Qty:

Loading add to cart quantity...

Description

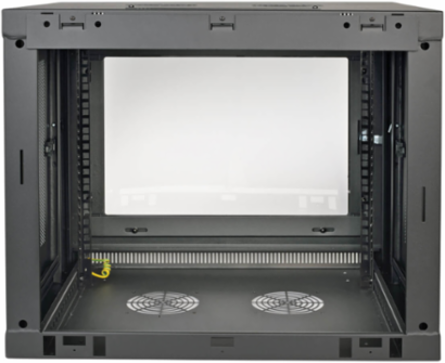

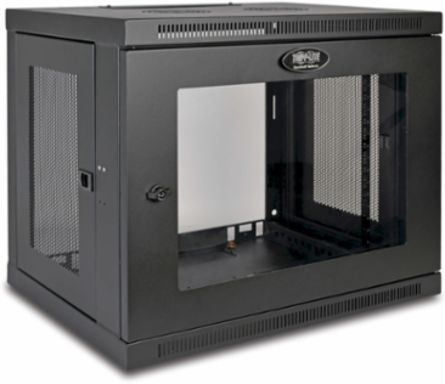

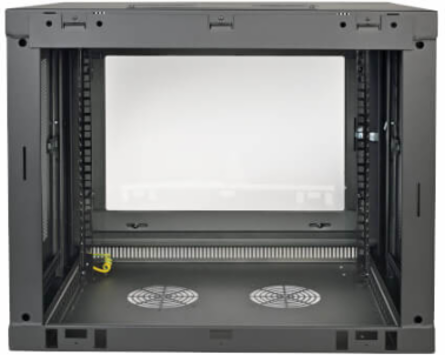

Wall-mount cabinet secures and organizes 9U of 19-inch rack equipment up to 16.5 inches deep in locations with limited floor space. Clear acrylic window allows you to monitor equipment without unlocking door.

Features

Maximum load capacity of 200 lb.

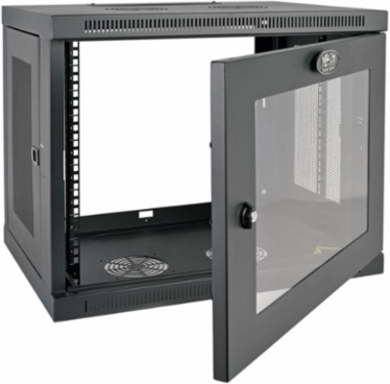

Front door includes shatter-resistant clear acrylic window
Locking steel cabinet vented at sides, top and bottom

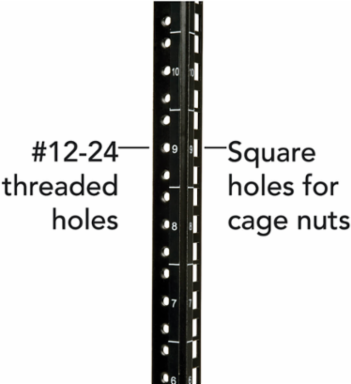

Secures 9U of 19 in. rack equipment up to 16.5 in. deep
Mounts to wall or rolls on floor (with optional SRCASTER)
5-year limited warranty

Specifications

Certifications

Certifications: UL/CSA 60950-1; EIA-310-E; IP20 Protection Rating

ApprovalsRoHS

Physical

Cable Access Hole Measurement (inches): 9.812 x 2.35 (l x w)

Maximum Device Depth (in.): 16.5

Rack Height: 9U

Shipping Weight (lbs.): 40.00

Unit Weight (lbs.): 34.6

Rack Depth: Shallow

ColorBlack

Minimum Device Depth (in.)3

Shipping Dimensions (hwd / in.)26.10 x 22.70 x 20.10

Unit Dimensions (hwd / in.)19.75 x 23.63 x 17.69

Weight Capacity - Stationary (lbs.)200

Overview

UPC Code: 037332187291

Rack TypeEnclosure

Special Features

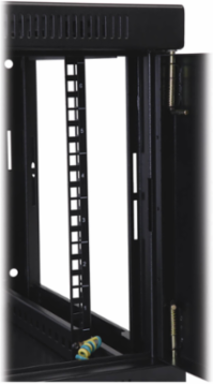

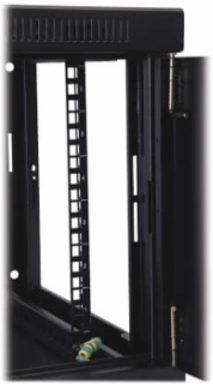

Grounding Lug: Front and Back door frames

Warranty

Product Warranty Period (Worldwide): 5-year limited warranty

Downloads
