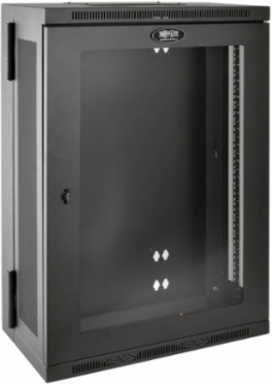

Tripp Lite SRW18US13G 18U Low-Profile Wall-Mount Rack Enclosure Cabinet, 12.75 Inch Deep, Black
- MPN: SRW18US13G
- UPC: 037332187383
- PPN: TRP-SRW18US13G
CAD
$1525.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wall-mount cabinet secures and organizes 18U of 19-inch rack equipment up to 12.75 inches deep in locations with limited floor space. Clear acrylic window allows you to monitor equipment without unlocking door.
Features
- Maximum load capacity of 200 lb.

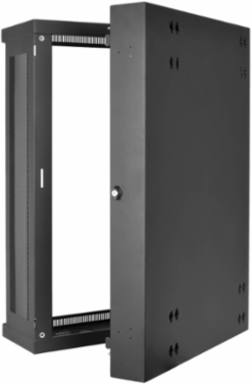

- Swings away from wall on hinge for easy back-door access

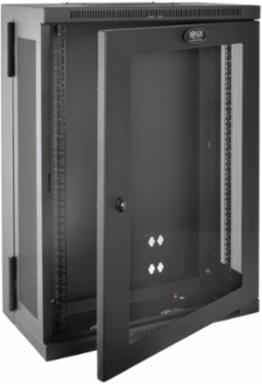

- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Secures 18U of 19 in. rack equipment up to 12.75 in. deep
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
| Load Capacity | 250 lb |
|---|---|
| Rack Height | 18U |
| Weight | 83.77 lb |
| Rack Type | Enclosure |
| Grounding Lug Location | Front door frame |
| Material | Steel |
| Front Door Window | Clear acrylic, shatter-resistant |
| Mounting | Wall-mount, optional rolling caster kit |
| Rail Mounting Hole Type | Square-hole and threaded-hole |
| Security Features | Locking doors and side panels |
| Warranty | 5-year limited |
| Maximum Device Depth | 12.75 in. |
|---|---|
| Dimensions (H x W x D) | 35.6 x 23.62 x 13 in |
| Rack Depth | Shallow |
| Cable Access Ports | 9.812 x 2.35 in. removable covers, top and bottom |
| Color | Black |
| Finish | Black powder-coated |
| Ventilation | Vented panels at sides, top, bottom |
| Rail Adjustment Increment | 7/8 in. |
| Door Opening | Reversible, swings away from wall |
| Certifications | UL/CSA 60950-1, EIA-310-E; RoHS; IP20 |
| Wall Mount Hole Spacing | 16 in. |
