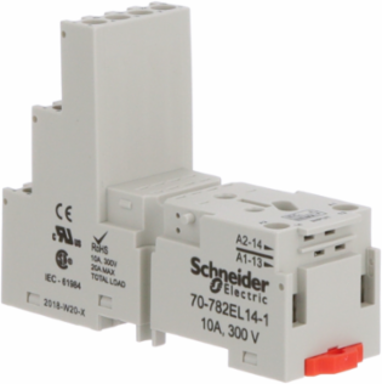

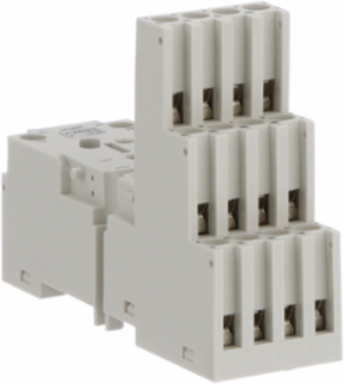

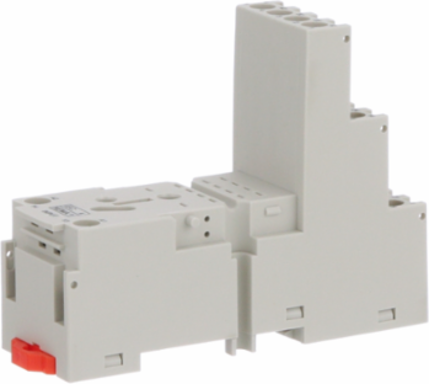

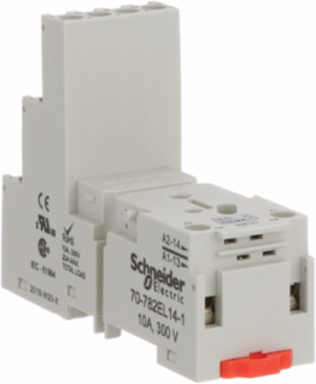

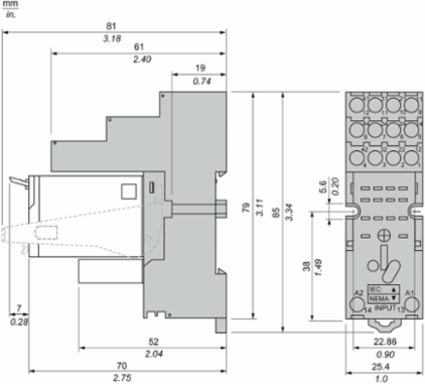

Schneider Electric 70-782EL14-1 Socket, SE Relays, 10A, 17 pins, screw connectors, separate contact, for 782 relays
Schneider Electric 70-782EL14-1 Socket, SE Relays, 10A, 17 pins, screw connectors, separate contact, for 782 relays
- MPN: 70-782EL14-1
- PPN: SCH-70-782EL14-1
- UNSPSC: 39122335
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$16.55/ EA
Description
Legacy general purpose relay series accessory , optional socket for 782R series relays with 4PDT configuration contacts rated 10A at 300V. Lift connect terminals 14 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.
Features
- Compatible with plug in control relay Schneider Electric
- It is flexibility design for space-saving
- Easy installation and connect to the relay from its socket
- Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs
Specifications
Conformance Attributes
- Product Certifications
- UL, CSA, CE
Complementary Attributes
- Line Rated Current
- 10 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fixing Mode
- by screw, M3 panel, clip-on 35 mm symmetrical DIN rail
- Carbon Footprint Of The Distribution Phase A4
- 0.0216505237, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Connections Terminals3
- panel lift terminals, clamping connection capacity:2 x 1.5...1 x 2.5 mm², AWG 16...AWG 14 solid, panel lift terminals, clamping connection capacity:2 x 1.5...1 x 2.5 mm², AWG 16...AWG 14 stranded
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Contacts Type And Composition
- 4 C/O
- Package Weight Lbs
- 62 g
- Product Or Component Type
- socket
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 0.9 kg CO2 eq.
- Medium Desc
- Socket, SE Relays, 10A, 17 pins, screw connectors, separate contact, for 782 relays
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- This socket form a part of a circuit and are used to mount a relay.They provide the electrical interface between the relay itself and the circuit during 20 years and product is adhering to UL standard UL E70550.
- Energy Model Manufacturing A1 A3 2
- Energy model used: Electricity Mix; Production mix; Low voltage; CN
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; US
- Contact Terminal Arrangement
- separate
- Ue Rated Operational Voltage5
- 300 V
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Tightening Torquechassis 0.8 N.m, AWG 16...AWG 14, copper, screw 0.8 N.m
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.1464704904
Carbon Footprint Of The Manufacturing Phase A1 To A30.7 kg CO2 eq., 0.7396708229
Connections Terminalspanel lift terminals, clamping connection capacity:2 x 1.5...1 x 2.5 mm², AWG 16...AWG 14 solid, panel lift terminals, clamping connection capacity:2 x 1.5...1 x 2.5 mm², AWG 16...AWG 14 stranded, screw connectors
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Flame RetardanceUL94-V0
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Electromechanical Relays
Shape Of Screw Headcombination roundhead
Switch Function4PDT
Ue Rated Operational Voltage2300 V
Stocking FlagY
Pep CodeENVPEP2202006EN
Pep Verification Date2023-01-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; US
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; US
Global Commercial StatusEnd of commerc. announced
Environment Attributes Main
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- ROHS Exemption Information
- Yes
- Reach Free SHVC
- Yes
- China ROHS Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C
- Environmental Disclosure
- ENVPEP2202006EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2202006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Product Compatibilityrelay 792XDX, relay 782XDXH, relay 792XBX, diode 70-BSMD, signalling device 70-BSMLG, suppressor module 70-BSMM, jumper wire 16-782CBJ-1
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.9077918371
Ambient Air Temperature For Storage-40-105 °C
IP Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-01-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- socket
Range Of ProductHarmony Electromechanical Relays
Specifications
- Depth
- 79 mm
