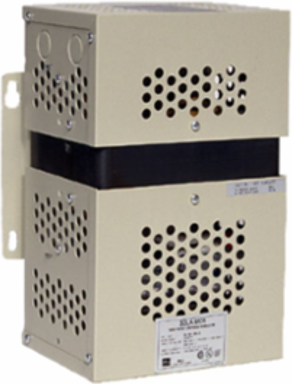

SolaHD 63232158 MCR Hardwired Power Line Conditioner, 120 VA-15 kVA, Single Phase, ±3% Voltage Regulation
- MPN: 63232158
- PPN: SHD-63232158
CAD
$3380.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
MCR Hardwired Series Power Line Conditioning with Voltage Regulation provides excellent noise filtering and surge protection to safeguard connected equipment against damage, degradation or malfunction. This protection, combined with the excellent voltage regulation, can significantly increase the MTBF of protected equipment. The MCR is a perfect choice where dirty power caused by impulses, swell, sags, brownouts or waveform distortion can lead to costly downtime due to damaged equipment.
Features
- cULus, CSA, RoHS
- ±3% output voltage regulation
- Noise attenuation: 120 dB in common mode and 60 dB in transverse mode
- Surge protection tested to ANSI/IEEE C62.41 Class A & B Waveform: <10 V let through typical
- Acts as a step-up or step-down transformer
- Harmonic filtering
- Hardwired
- Galvanic isolation provides exceptional circuit protection
- 25 year typical MTBF. No maintenance required
Documentation & Downloads
Specifications
Key Specifications
- Group 2
- 120, 208, 240, 480 Input Voltage, 120 Output Voltage, 120, 250 VA; 120, 208, 240, 480 Input Voltage, 120, 208, 240 Output Voltage, 500, 750, 1000, 1500, 2000, 3000, 5000 VA; 208, 240, 480 Input Voltage, 120, 208, 240 Output Voltage, 7500, 10000, 15000 VA
- Group 4
- 110, 120, 220, 240, 380, 415 Input Voltage, 110, 120, 220, 240 Output Voltage, 120, 250, 500, 1000, 2000, 3000, 5000 VA; 220, 240, 380, 415 Input Voltage, 110, 120, 220, 240 Output Voltage, 7500, 10000, 15000 VA
- Hertz
- 50 Hz, 60 Hz
- KVA Rating
- 120 VA-15 kVA
- Operating Temperature
- -20°C to +50°C
- Overload Capability
- Current limited at 1.65 times rated current
Group 3600 Input Voltage, 120, 208, 240 Output Voltage, 500, 1000, 2000, 3000 VA; 208, 240, 480, 600 Input Voltage, 120, 208, 240 Output Voltage, 5000, 7500, 10000, 15000 VA
EfficiencyAt Full Load: Up to 92%
Input Voltage Range50 Hz: 110-415 Vac; 60 Hz: 120-600 Vac
Number of PhasesSingle Phase
Output Voltage Range50 Hz: 110-240 Vac; 60 Hz: 120-240 Vac
