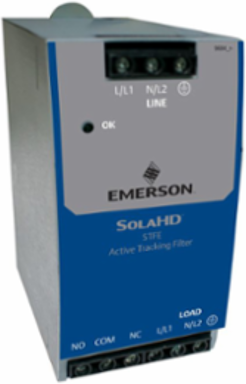

SolaHD STFE05024L Elite Surge Filter, 20 Amp, UL 19,500 Amp Surge Capacity, DIN Rail Mount
- MPN: STFE05024L
- PPN: SHD-STFE05024L
CAD
$681.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
STFE Elite Series combines sinewave tracking technology with surge protection to protect against the full spectrum of voltage transients and surges. These DIN rail mounted devices protect your equipment by continuously tracking AC power input and responding to high voltage transients and high frequency noise. They are available as hardwired, single phase units in a wide range of amperage ratings and designed for years of trouble free operation.
Features
- cRUus, RoHS
- Series connected DIN Rail mounted filter. Durable metal mount clip
- UL Listed surge current capacity: 19,500 Amps
- Transient protection in all modes (L-N, L-G, and N-G)
- Single phase applications up to 20 Amp
- Operating temperature from -40°C to +50°C
- Screw terminal connections: Reliable and convenient screw clamp connections; Accept 10-16 AWG wire; Meet IP20 specifications for ingress protection
- LED status indication
- Form C contact for remote monitoring
Documentation & Downloads
Specifications
Key Specifications
- Single-Phase 120 and 240 Vac Model Amperage
- 3.0, 5.0, 10.0, 20.0
- Peak Surge Current Capability: Line to Neutral
- 13,000 Amps
- Peak Surge Current Capability: Neutral to Ground
- 6,500 Amps
- Load Surge Current Rating: 1 sec
- 3 x Nominal
- Frequency Response: Normal (F-R) 100 kHz to 50 MHz
- 90 dB Max
- Transient Reduction Typical Category A Ringwave
- < 60 V Peak
- Operating Temperature
- -40°C to +50°C
Peak Surge Current Capability: Per Phase19,500 Amps
Peak Surge Current Capability: Line to Ground6,500 Amps
Load Surge Current Rating: 10 msec5 x Nominal
Load Surge Current Rating: 10 sec2 x Nominal
Frequency Response: Common (F-R) 5 MHz to 50 MHz60 dB Max
Transient Reduction Typical Category B Ringwave< 100 V Peak UL 1449
Hertz47-63 Hz
