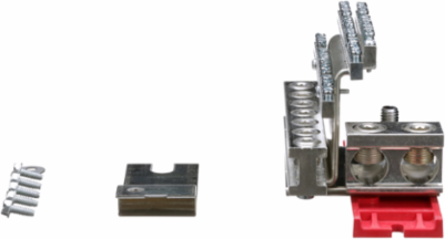

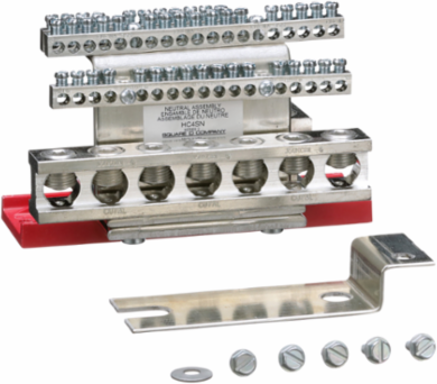

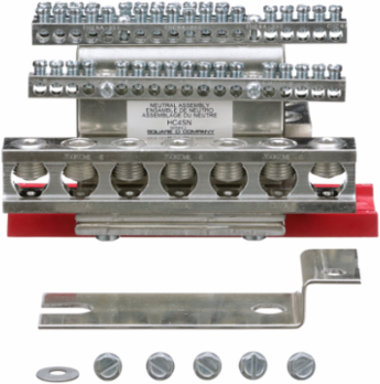

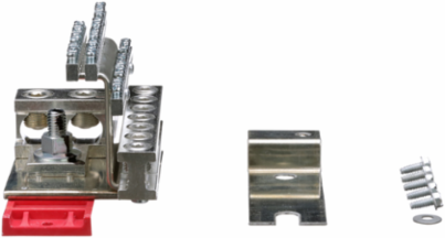

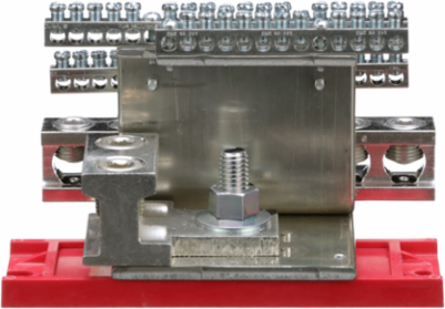

Square D HC4SN Panelboard accessory, I-Line, assembly kit, solid neutral, 400A, 14 AWG to 350kcmil

Panelboard accessory, I-Line, assembly kit, solid neutral, 400A, 14 AWG to 350kcmil - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/02bc7fb5f9ff7d3dfdeb2fb223c11d4d8f9c4250-medium.png

Panelboard accessory, I-Line, assembly kit, solid neutral, 400A, 14 AWG to 350kcmil - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/39c4ded295d178fcbe9ffc672241fca1d9d1a0f4-medium.png

Panelboard accessory, I-Line, assembly kit, solid neutral, 400A, 14 AWG to 350kcmil - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/eec2ac5f0f373c9b1607a5e5da041ab7e219caf6-medium.png

Panelboard accessory, I-Line, assembly kit, solid neutral, 400A, 14 AWG to 350kcmil - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/ee1cefff60fda9c364546671e78e153062996fd5-medium.png

Panelboard accessory, I-Line, assembly kit, solid neutral, 400A, 14 AWG to 350kcmil

Panelboard accessory, I-Line, assembly kit, solid neutral, 400A, 14 AWG to 350kcmil

Panelboard accessory, I-Line, assembly kit, solid neutral, 400A, 14 AWG to 350kcmil

Panelboard accessory, I-Line, assembly kit, solid neutral, 400A, 14 AWG to 350kcmil

Panelboard accessory, I-Line, assembly kit, solid neutral, 400A, 14 AWG to 350kcmil

Square D HC4SN Panelboard accessory, I-Line, assembly kit, solid neutral, 400A, 14 AWG to 350kcmil

MPN: HC4SN
UPC: 785901506010
PPN: SCH-HC4SN

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$451.31/ EA

Loading add to cart quantity...

Description

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This Square D 400A I-Line Solid Neutral is an electrical accessory for a HCN & HCM distribution board. This product has UL & CSA certifications. This product comes with an 18 months warranrty.

Specifications

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1407017EN

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectiveCompliant with Exemptions

Specifications

Range Of Product: Square D

Product Or Component Type: solid neutral

Accessory / Separate Part Categoryelectrical accessory

Complementary

[In] Rated Current: 400 A

Product Destination: HCN distribution board || HCM distribution board

Net Weight1.39 kg
