Fluke FLUKE-SOL-TI-27HZ-KIT PVA-1500HE2 I-V Curve Tracer Thermography Kit FLUKE-SOL-TI-27HZ-KIT

MPN: FLUKE-SOL-TI-27HZ-KIT
UPC: 195112126349
PPN: FLU-FLUKE-SOL-TI-27HZKIT

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

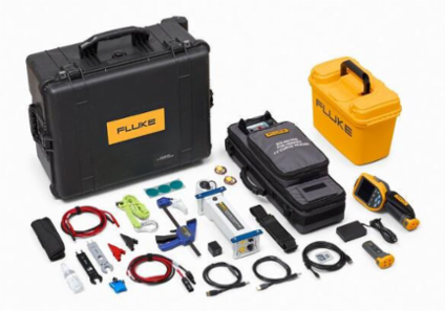

PVA-1500HE2 I-V Curve Tracer Thermography Kit FLUKE-SOL-TI-27HZ-KIT

Features

Measures and displays I-V curves up to 1500V and 30A, including on high efficiency modules
Advanced built-in PV model provides immediate PV performance checking
Wireless interfaces for faster setup, safer work environment, and freedom of movement during PV troubleshooting
Automates data management, analysis, and reporting
Identify hotspots that may indicate damaged or underperforming cells

Documentation & Downloads

Specifications

Key Specifications

Color alarms	Yes. User-selectable hot and cold point and internal/external range color alarms. Modifies palettization of IR image by limiting which pixels are drawn using palette colors based on the pixel temperature.
Operating temperature	-10 °C to 50 °C (14 °F to 122 °F)
Relative humidity	10 % to 95 % non-condensing
User-definable spot markers	Yes, 5 user-adjustable spot markers for a single pixel each. Position is adjustable. Temperature value for marker shown on screen. User can choose to switch display on/off for each marker.
Hard case	Rugged hard carrying case with soft transport bag, including adjustable strap
Electromagnetic combability	IEC 61326-1: Portable Electromagnetic Environment;IEC 61326-2-2 CISPR 11: Group 1, Class A
US FCC	47 CFR 15 Subpart C Sections 15.207, 15.209, 15.249
Shock	30 g, 11 ms, IEC 60068-2-27
Sized (H x W x L)	∼(26.7 cm x 10.1 cm x 14.5 cm)∼ (10.5 in x 4.0 in x 5.7 in)
Enclosure rating	IP54
Recommended calibration cycle	Two-years (assumes normal operation and normal aging)
RoHS compliant	Yes

Infrared spectral band	~8-14μm
Storage temperature	-20 °C to 50 °C (-4 °F to 122 °F) without batteries
Spot temperature	Center spot (unmovable)
User defined measurement boxes	Yes, 5 user-adjustable rectangles. Size and position are adjustable. Rectangle statistics shown on screen: Min, Max, Average temperature. User can choose to switch display on/off for each marker.
Safety standards	IEC 61010-1: Pollution Degree 2
Australian RCM	RCM IEC 61326-1
Vibration	10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6
Drop	Engineered to withstand 2m drop
Weight (battery included)	0.885 kg (1.95 lbs)
Warranty	Two-years (standard)
Supported languages	Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish

PVA-1500 Test Lead and Clip Specifications

Voltage Range	0 to 1500V DC
Temperature	0 °C to 45 °C, 32 °F to 113 °F
Pollution Degree	2
Lead Length	152 cm, 59.84 in
Manufacturer (Test Leads and Alligator Clips)	Staubli

Current Range	0 to 30A DC
Humidity	Maximum relative humidity of 80% for temperatures up to 31 °C (87.8 °F) decreasing linearly to 50% relative humidity at 40 °C (104 °F)
Altitude	2000 m, 6561 ft maximum
Lead Colors	Positive=red, negative=black
