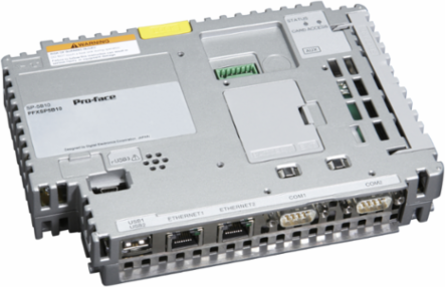

Pro-Face PFXSP5B10 SP5000 Series Power Box
- MPN: PFXSP5B10
- PPN: SCH-PFXSP5B10
CAD
$2003.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SP5000 Series Power Box
Features
- This premium Pro-face SP5000 Power Box features a unique "snap-on" modular architecture that seamlessly mates with standard display modules without requiring extensive field wiring
- Outfitted with two independent 10BASE-T/100BASE-TX/1000BASE-T RJ-45 Ethernet ports, this controller allows for complete network segmentation between operational technology (OT) and information technology (IT) networks. This dedicated hardware isolation enhances system cybersecurity, prevents network traffic bottlenecks, and guarantees deterministic communication for your critical industrial automation protocols.
- The unit includes two multi-protocol D-Sub 9-pin serial links (supporting software-selectable RS-232C, RS-422, and RS-485 at speeds up to 115,200 bps) alongside dual USB Type-A ports and a USB mini-B port. This rich interface mix eliminates the need for expensive third-party conversion gateways, letting you aggregate data from legacy PLCs, modern smart sensors, barcode scanners, and flash drives directly into a single HMI centric architecture.
- Engineered with two dedicated SD card slots, the module splits critical operating tasks into a designated System slot and a separate Storage slot for reliable database logging, trend capturing, and recipe handling.
- Fully certified under ANSI/ISA 12.12.01 and CSA C22.2 No 213 for Class I, Division 2 (Groups A, B, C, and D) hazardous locations, this rugged base unit operates reliably across a wide 0 C to 60 C temperature envelope. Built to withstand natural air circulation cooling and IEC/EN 61131-2 compliant levels of structural vibration and mechanical shock, it ensures stable execution in high-dust, heavy-machinery, and volatile industrial processing plants.
Documentation & Downloads
Specifications
Additional
- Input Voltage
- 12 Vdc
- Vibration Resistance
- IEC/EN 61131-2 compliant
- Electrostatic Discharge Immunity
- 6 kV (IEC/EN 61000-4-2 Level 3)
- Storage Temperature Range
- -20 to 60 C
- Dust Tolerance
- 0.1 mg/m3 or less non-conductive
- Operating Altitude
- up to 2000 m (800 to 1,114 hPa)
- Dimensions
- 188 x 131 x 45 mm (W x H x D)
- Serial Interface COM2
- RS-232C/422/485, 7 or 8 bit data, 1 or 2 stop bits, parity none/odd/even, 2,400 to 115,200 bps, 187,500 bps (MPI)
- USB Ports
- Type A (USB 2.0) x2, Mini B (USB 2.0) x1
- Conformal Coating
- Yes (model PFXSP5B10F0C only)
- Ratings
- CSA C22.2 No213, ANSI/ISA 12.12.01, EN61000-6-4, EN61000-6-2, Class 1 Div 2 Groups A, B, C, D
- Application Memory
- SD card
Power Consumption25 W max
Shock ResistanceIEC/EN 61131-2 compliant
Ambient Temperature Range0 to 60 C
Operating Humidity10% to 90% RH non-condensing
Pollution DegreeDegree 2
Weight0.9 kg
Serial Interface COM1RS-232C/422/485, 7 or 8 bit data, 1 or 2 stop bits, parity none/odd/even, 2,400 to 115,200 bps
Ethernet StandardIEEE802.3i/802.3u/802.3ab, 10BASE-T/100BASE-TX/1000BASE-T
Audio Output300 mW speaker (8 , 1 kHz), 10 k line output
CertificationsUL508, UL/c-UL, CSA C22.2 No142, CE, RoHS, GOST-R, KC
Operating SystemReal Time OS
Backup MemoryNVRAM 512 KB
