Tripp Lite HCRK-54 300W Medical-Grade Mobile Power Retrofit Kit with 54 Amp-hour Battery and 3 Outlets
Tripp Lite HCRK-54 300W Medical-Grade Mobile Power Retrofit Kit with 54 Amp-hour Battery and 3 Outlets
- MPN: HCRK-54
- UPC: 037332142795
- PPN: TRP-HCRK-54
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4045.75/ EA
Description

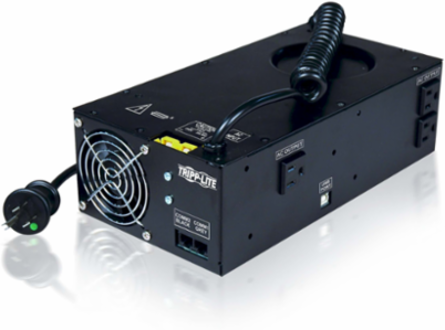

300W Medical-Grade Mobile Power Retrofit Kit with 54 Amp-hour Battery and 3 Outlets
Features
- Provides UL 60601-1 compliance for connected mobile equipment (used in every sector of healthcare facilities, both inside and outside of patient-care areas

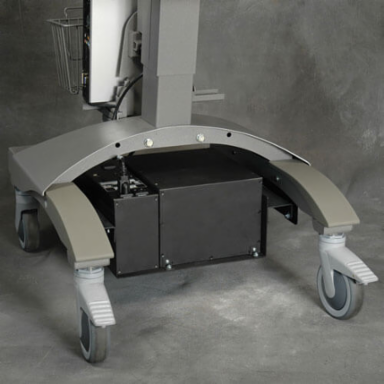

- Adds reliable mobile AC power source to medical carts
- Saves money by upgrading new or existing non-powered carts for a fraction of the cost of buying new powered models
- Simultaneously powers connected equipment while recharging batteries

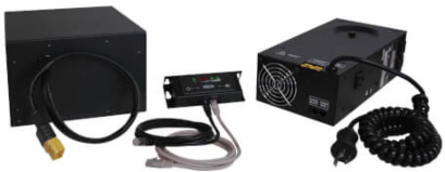

- Includes everything needed to retrofit a cart: mobile power supply, 54 amp-hour user-replaceable battery module, PowerAlert data-saving software, remote user interface (RUI) and mounting hardware kit
- 2-year power module and 6-month battery module limited warranty
Specifications
Surge / Noise Suppression
- EMI / RFI AC Noise Suppression
- Yes
Battery
- DC System Voltage (VDC)
- 12
Battery ChargeEqual to discharge time. Includes advanced 3-stage (10A) battery charger
Certifications
- Certifications
- Tested, certified and compliant to UL 60601-1, CAN/CSA-C22.2 No. 601.1-M90 and UL 1778 by TUV
Physical
- Cooling Method
- Fan
- Material of Construction
- Power Supply and Battery Module: metal
- Shipping Weight (lbs.)
- 84.00
Form Factors SupportedRetrofits most standard medical cart configurations
Shipping Dimensions (hwd / in.)19.40 x 15.10 x 17.90
User Interface, Alerts & Controls
- Front Panel LEDs
- On Remote User Interface (RUI): Output AC Power, Battery Charge Level and Battery Charging Status
- Audible Alarm
- Low Battery Alarm
SwitchesOn Remote User Interface (RUI): On/Off Switch and Alarm-Mute Switch
Input
- Nominal Input Voltage(s) Supported
- 120V AC
- Input Connection Type
- NEMA 5-15P-HG Hospital-Grade
- Voltage Compatibility (VDC)
- 12
Recommended Electrical Service15A 120V
Voltage Compatibility (VAC)120
Input Cord Length (ft.)10
Output
- Frequency Compatibility
- 60 Hz
- Output (Watts)
- 300
- Output Receptacles
- (3) 5-15R
- Peak Output Capacity (Watts)
- 750
Pure Sine Wave OutputNo
Nominal Output Voltage(s) Supported120V
Continuous Output Capacity (Watts)300
Communications
- Network Monitoring Port
- USB
Overview
- UPC Code
- 037332142795
Warranty
- Product Warranty Period (Worldwide)
- 2-year power module and 6-month battery module limited warranty
Downloads
