Schneider Electric NSYCRN66300 Spacial CRN Compact Enclosure 600mm x 600mm x 300mm IP66 IK10 Grey
- MPN: NSYCRN66300
- PPN: SCH-NSYCRN66300
CAD
$377.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

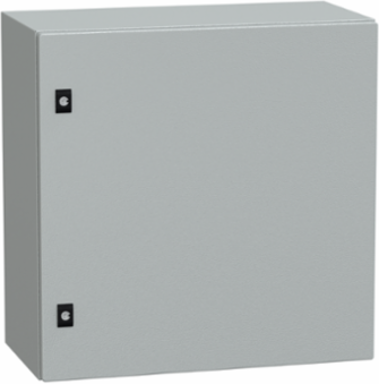

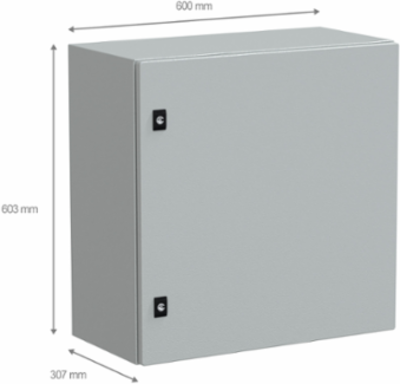

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 600 mm x (H) 600 mm x (D) 300 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Installation Accessory Type
- wall-mounting
- Product Name
- Spacial CRN
- Enclosure Nominal Height
- 600 mm
- Enclosure Nominal Depth
- 300 mm
- Enclosure Nominal Width
- 600 mm
- Range
- Spacial
Product Or Component Typecompact enclosure
Device Composition1 body || 1 cable gland plate || 1 door || 1 lock
Door Typeplain
Device Applicationmulti-purpose
Mounting Plate Descriptionwithout mounting plate
Complementary
- Product Certifications
- cUL || UL || DNV-GL
- Removable Parts
- door by hinges || cable gland plate by screws
- Standards
- IEC 62208
- Variant Particularity
- sides made from a single folded section || back welded with double profile forming a protected sealed area
- Colour
- grey RAL 7035)
- Net Weight
- 16 kg
- Number Of Doors
- front face 1
Accessibility For Operationfront
Type Of Gland Platestandard
Materialbody steel
Surface Finishepoxy-polyester powder
Lock Type3 mm double-bar lock
Door Opening Sidereversible 120 °)
Environment
- Ik Degree Of Protection
- IK10 IEC 62262
Ip Degree Of ProtectionIP66 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP100104EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
