Schneider Electric NSYCRN66300T Spacial CRN Compact Enclosure 600 mm x 600 mm x 300 mm IP66 IK08

  • MPN: NSYCRN66300T
  • PPN: SCH-NSYCRN66300T
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $465.72

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

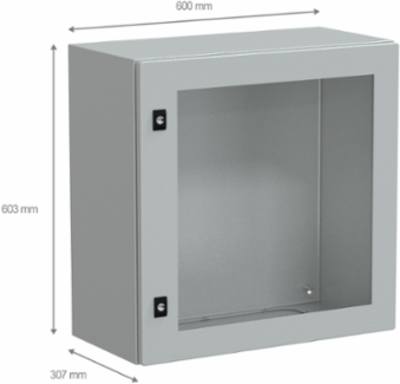

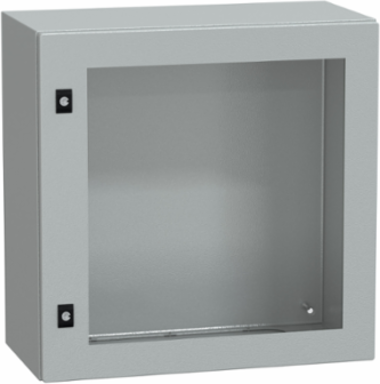

    The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant. It has IP66 and IK08 protection level, which can help protect against impact, water and dust. The dimensions are (W) 600 mm x (H) 600 mm x (D) 300 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is glazed, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This compact enclosure is c.UL certified.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Spain

    Physical Attributes

    Enclosure Nominal Height
    600 mm, 600 mm
    Color
    Gray RAL 7035)
    Enclosure Nominal Width600 mm, 600 mm

    Important Information Attributes

    Persona Type Ids
    LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Device Composition
    1 body, 1 cable gland plate, 1 door, 1 lock
    Carbon Footprint Of The Distribution Phase [A4]
    31.368098401091814, 31 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    3.1128693085330106, 3 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    kg CO2 eq., 0
    Local Publishable Date
    2025-09-16
    Stocking Flag
    Y
    Weee Scope
    Out
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1916
    China Rohs In Scope
    No
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Device Application
    multi-purpose
    Door Type
    Glass
    Lock Type
    3 mm double-bar lock
    Mounting Plate Description
    without mounting plate
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Product Or Component Type
    compact enclosure
    Removable Parts
    door by hingescable gland plate by screws
    Software Version
    v6.1
    Sustainable Packaging
    No
    Type Of Gland Plate
    standard
    Database Version
    2023-02
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    France, FR
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    Recyclability Potential In %
    98
    Package Weight(Lbs)
    15.800 kg
    Warranty (In Months)
    18
    Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Certificate AgencycUL, UL, DNV-GL
    Carbon Footprint Of The End-of-life Phase [C1 To C4]37 kg CO2 eq., 37.222495597846695
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]77 kg CO2 eq., 77.14503352109774
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Door Opening Sidereversible 120 °)
    Energy Efficiency OptimizedFalse
    Materialbody steeldoor steel and security glass
    Number Of Doorsfront face 1
    Product NamePanelSeT CRN
    RangePanelSeT
    ReturnabilityNo
    Surface Finishepoxy-polyester powder
    Total Lifecycle Carbon Footprint149 kg CO2 eq.
    Pep CodeENVPEP1001004EN
    Pep Verification Date2024-10-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code9403200090

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Reach Free Shvc
    Yes
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    148.84849682856927
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    No
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP1001004EN
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP1001004EN
    Ip Degree Of ProtectionIP66 IEC 60529
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2024-10-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Type
    compact enclosure

    ETIM

    ETIM 8
    EC000261
    ETIM 9EC000261

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
