Schneider Electric

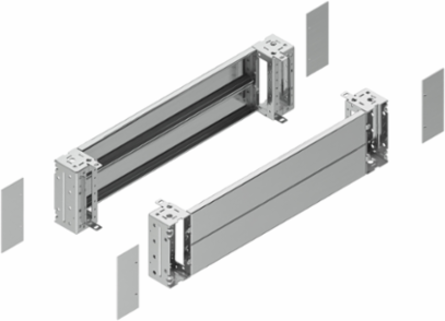

Schneider Electric NSYSPFX10200 Stainless Steel 304L Plinth Front W1000 H200, IP30, IK10

Stainless Steel 304L Plinth Front W1000 H200, IP30, IK10
  • MPN: NSYSPFX10200
  • PPN: SCH-NSYSPFX10200

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1423.78/ EA

Description

Crafted by Schneider Electric, this stainless steel 304L plinth stands out with its robust design, tailored for environments that require both durability and protection. With an ingress protection rating of IP30 and an impact protection level of IK10, it ensures reliable performance in challenging conditions. The dimensions, W1000 H200, lend it a practical form factor that facilitates ease of installation while providing a solid foundation for various electrical applications. This plinth is an ideal solution for businesses looking to enhance both safety and functionality in their operational setups.

Specifications

Height
200 mm (7.87 in)
Material
Stainless Steel 304L
IP Degree of Protection
IP30
Surface Finish
Untreated
Range Compatibility
Spacial SF, SM, SD, S3D, SFHD, S3X, SMX, SFX, SDX, CRNG
Device Application
Multi-purpose
Mercury Free
Yes
RoHS Exemption Information
Yes
China RoHS Regulation
Product out of China RoHS scope, substance declaration for information
Circularity Profile
N/A
Product Or Component Type
Plinth front
Width1000 mm (39.37 in) nominal
Fixing ModeBy fixing element - on structure
IK Degree of ProtectionIK10
RangeSpacial
Net Weight10.92 kg
RoHS CompliancePro-active compliance (Product out of EU RoHS legal scope), Green Premium, REACh, RoHS Compliant
Environmental DisclosureENVPEP2107011EN
Reach RegulationContains Substances of Very High Concern above threshold
Accessory / Separate Part CategoryEnclosure accessory
Sustainable Offer StatusGreen Premium product
Device CompositionFixing elements, 4 corner cover, 1 front panel, 1 rear panel
